Introduction

Flange alignment tools, manufactured in the United States, provide a safe and effective solution for flange alignment tasks. A safe alternative to dangerous swinging hammers and Spud keys. Showing exceptional performance with maximum security by softening compression and crushing points. Offer the most economical solutions to put holes for flange bolts. The flange alignment tool is designed to correct bends and displacements without highlighting the pipeline or creating effects related to pipeline damage. These innovative alignment tools can also be used to correct displacement of hydraulic cylinders, connectors and wedges. If you need a single device or a combination of several devices, and if you need to quickly and safely restore calibration, then a Petruflange alignment tool is what you need.

Application

Title alignment sets are safe replacements to traditional alignment methods such as the use of pins, drifting hammers and keys. These instrument sets are specially designed to position the pins when replacing the pipe ring or if the surface of the flange requires a reduction.

Using the breeze alignment tool, all this can be done without requiring dangerous features or use with open keys.

Industrial Utility

For aligning or re-aligning flange joints during pipe works, flange tool kits are a must have. While traditionally hammer and pins were used to create these alignments, today the innovative flange tool sets offer a better control and safer solution while keeping the pipe work safe from being damaged.

This tool is required for all industrial management pipe work:

construction

Pipe and pipe maintenance

Oil and gas stations

Compressed Air System

Function

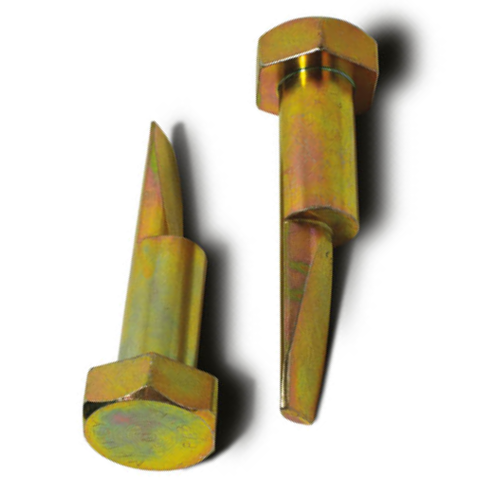

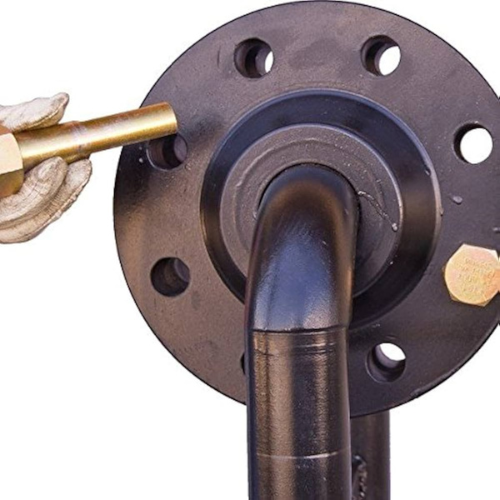

It's all you have to do. Insert the Flange ankle pin and rotate it from top to bottom to correct movement and rotation. Titan's Flange Peg Pins is the safest, simplest and cheapest way to align strap bolts.

3 simple steps to align the flanges

The flanged alignment tool is easy to use and adapts to different sizes of flange holes. My invention overcomes gaps by providing an alignment tool for the Flange to align the flanges that are not aligned, so that workers can align the flanges safely and effectively without using a hammer.

Step 1:

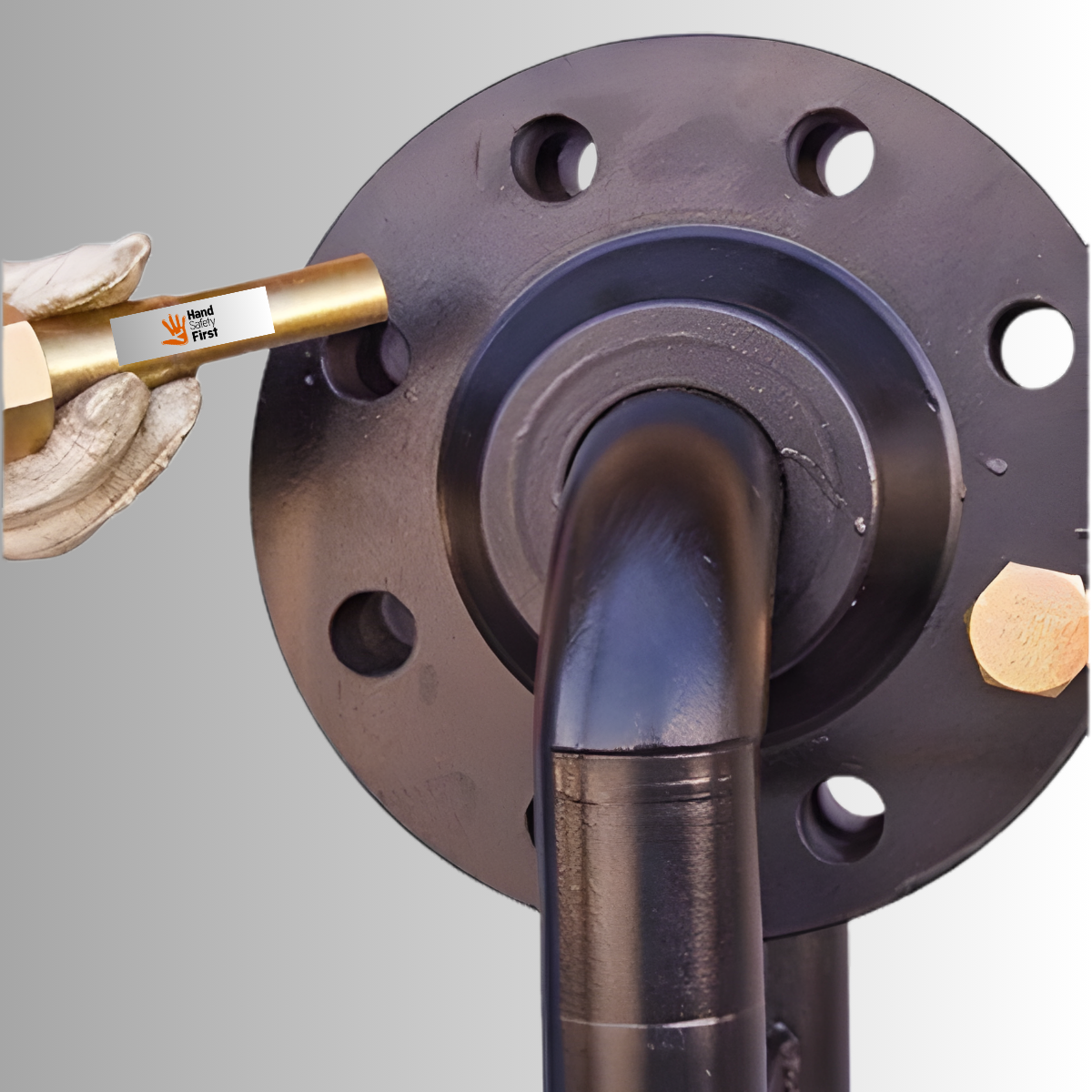

Inspect the flange to find a bolt tightening suitable for the task. Make sure it is level enough to match the conical tree.

Step 2:

Once fitted, turn the tapered shaft slowly. Continue the rotation until all the bolt holes are perfectly in alignment.

Step 3:

In case of difficulty turning the tree, you can activate the secondary tool. Then follow the last step; Turn until it reaches the perfect axial leveling. The set of flange alignment tools offers everything you need, including various sizes of cone shafts and main accessories.

Features

● Construction Construction

These Flange alignment tools are produced for funny flanges. To understand how to maximize productivity and minimize the risk of injury from your wrestling team. ●Efficiency design

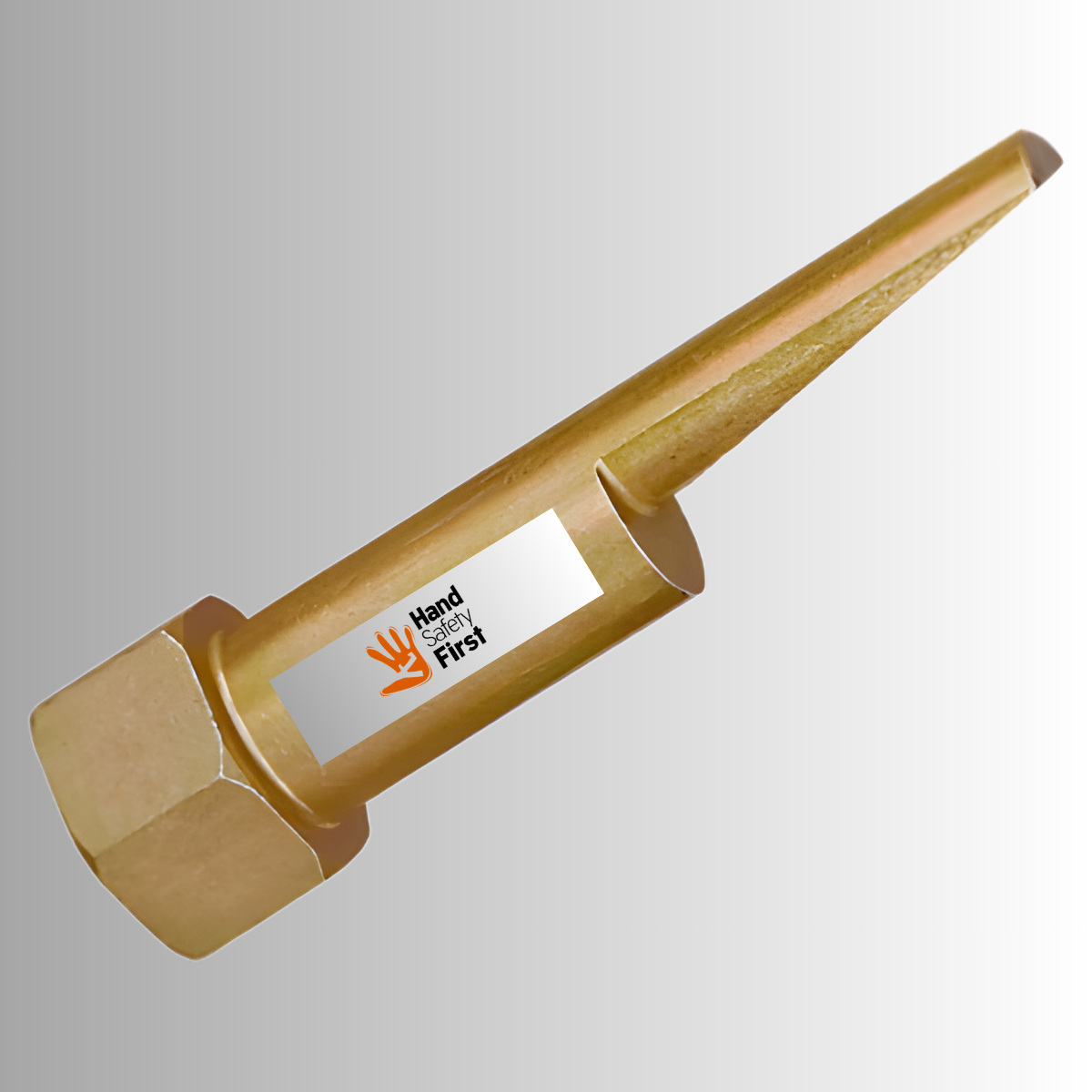

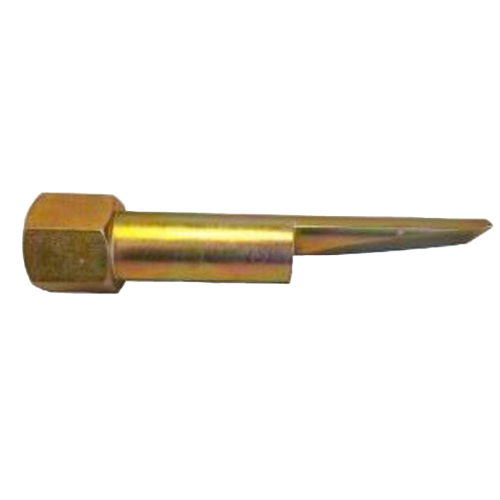

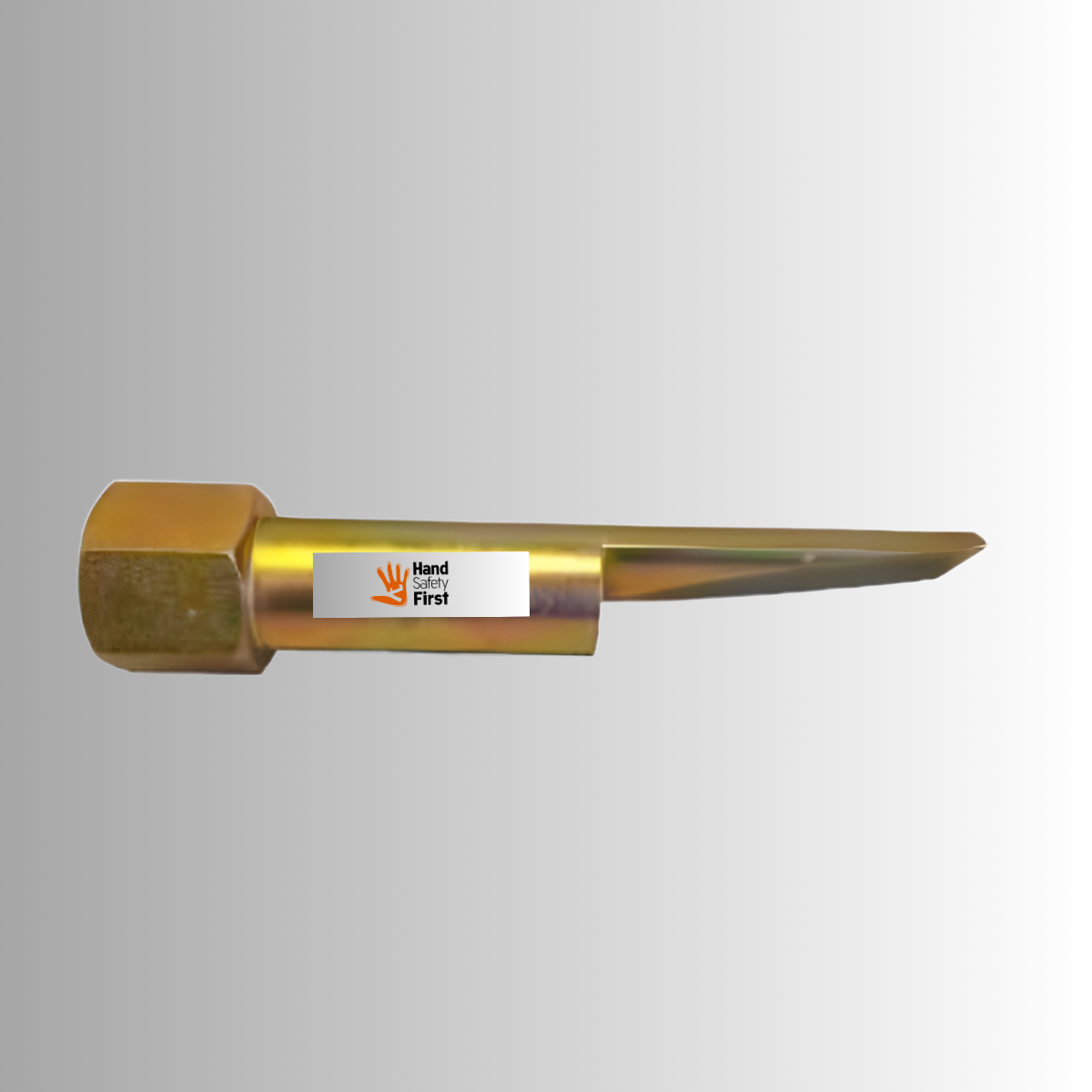

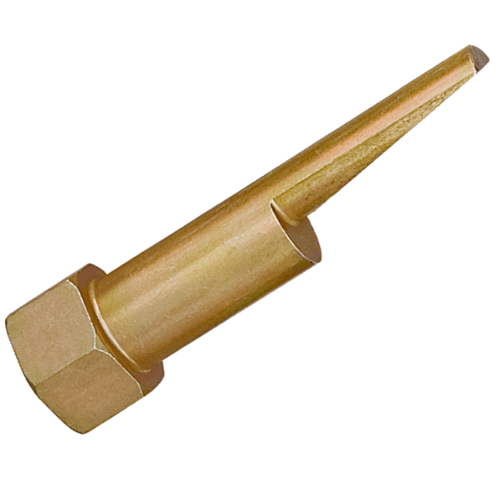

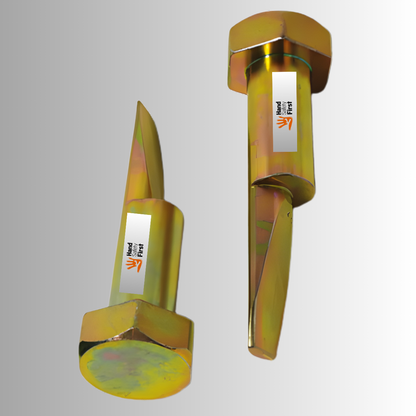

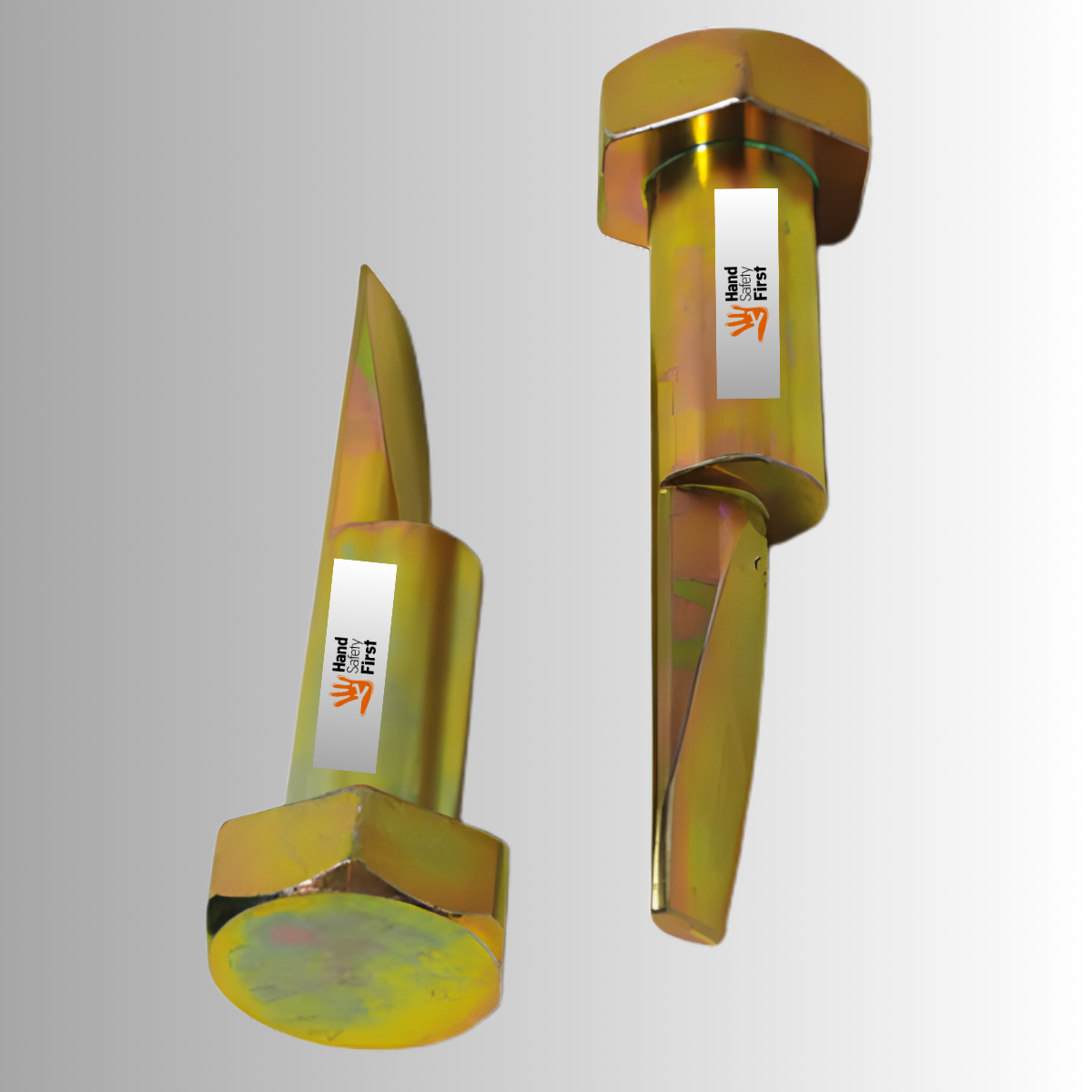

With exceptional performance and efficiency, the Titan flange pins are made up of a tapered shaft design. This unique construction eliminates the need for knock and leverage when flange bolt holes are aligned.

● Safety

There is no requirement for pins to bypass the hammer or cope with the catches. The tools using equipment are very subject to injuries.

●Economics

The unique and simple design of equalizing flange alignment is one of the most economical solutions for lining up flange holes and solving the most strict alignment levels.

●Availability

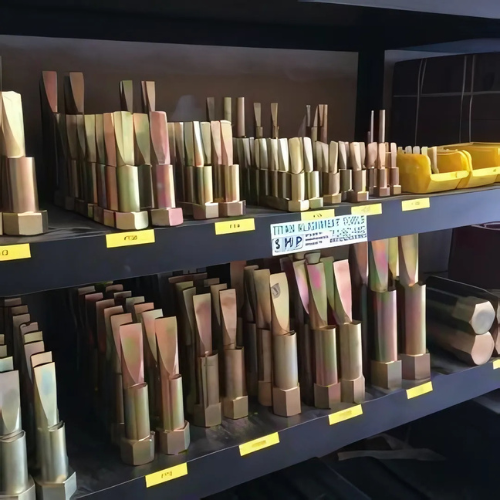

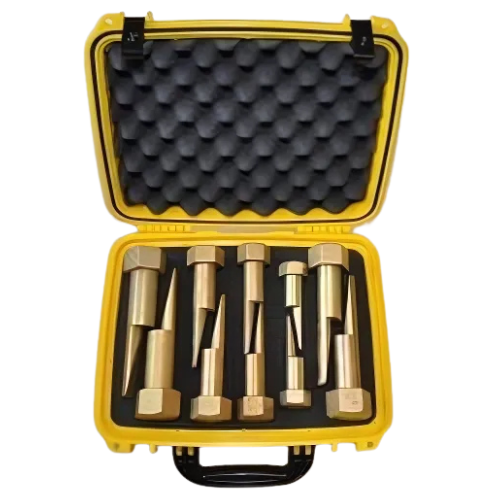

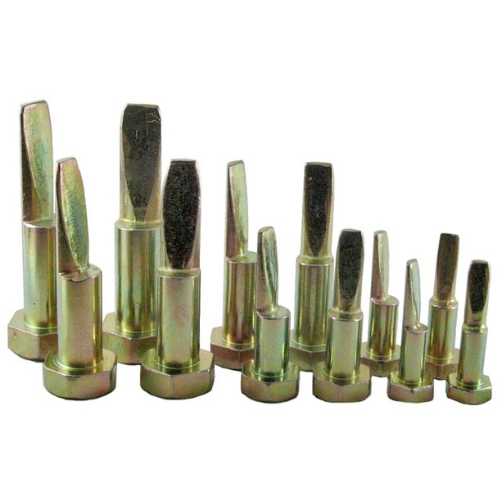

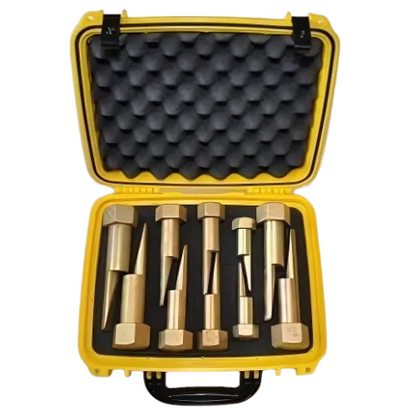

You can purchase a set of fly titan alignment tools, both in the only part and in the set. Flange alignment tool kits are available in pairs of three, four, five, and six sizes. All kits are supplied in an individual tool box with foam. For more convenience, a set of tools bring all the pins together to provide an organized solution to prevent inappropriate and damaged losses when they are at the bottom of the old set of tools.

Specification

Spindle sizes vary from 3/8" to 3-5/8"

An economically effective solution for leveling

Durability and rust resistance, exhibition and port

Manufacturer's certificate is included
