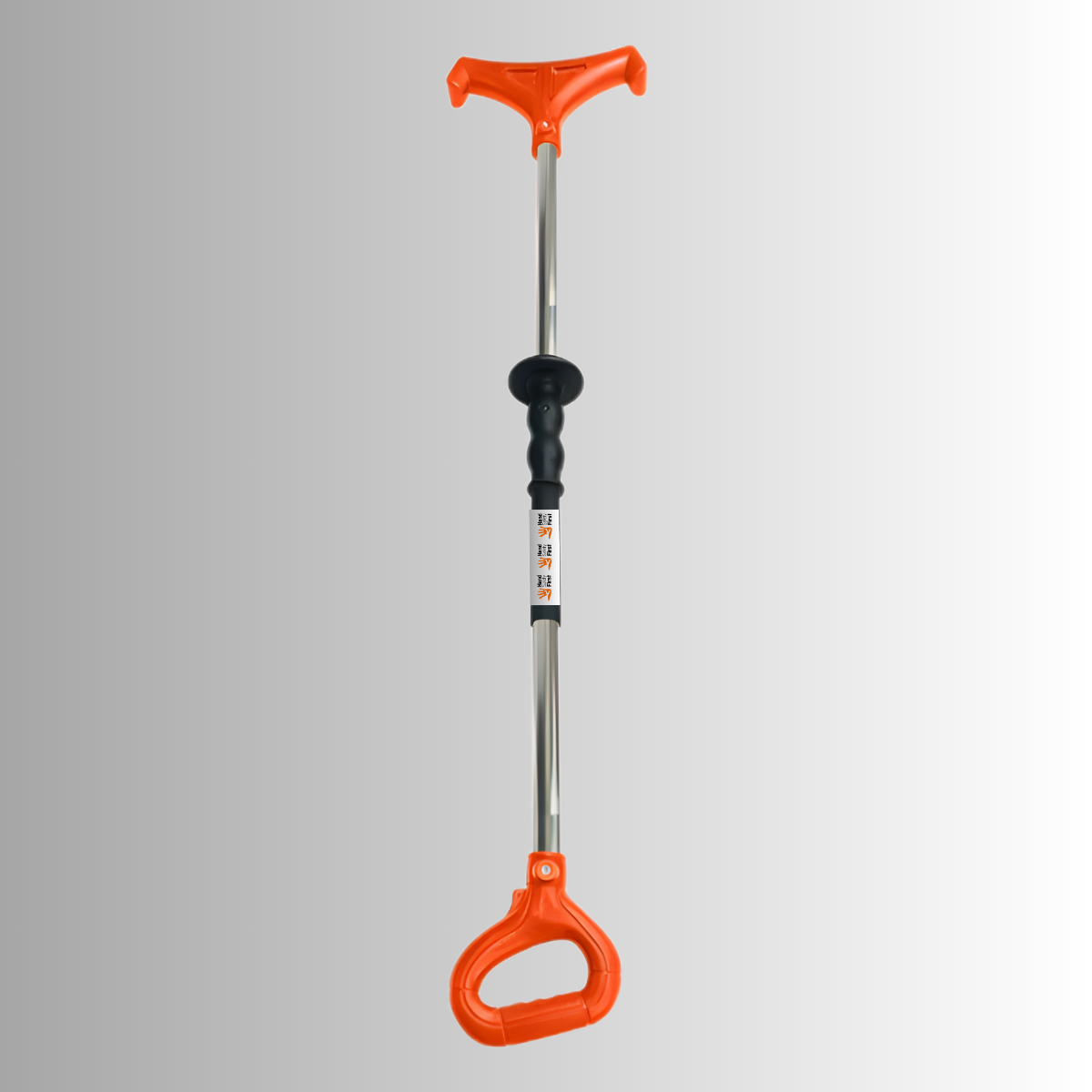

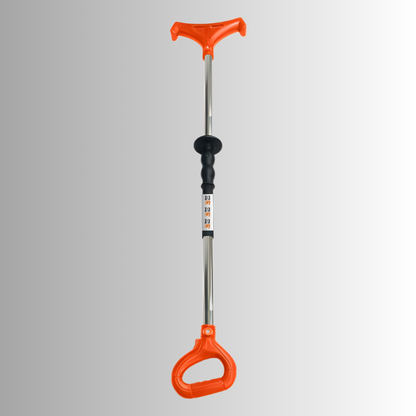

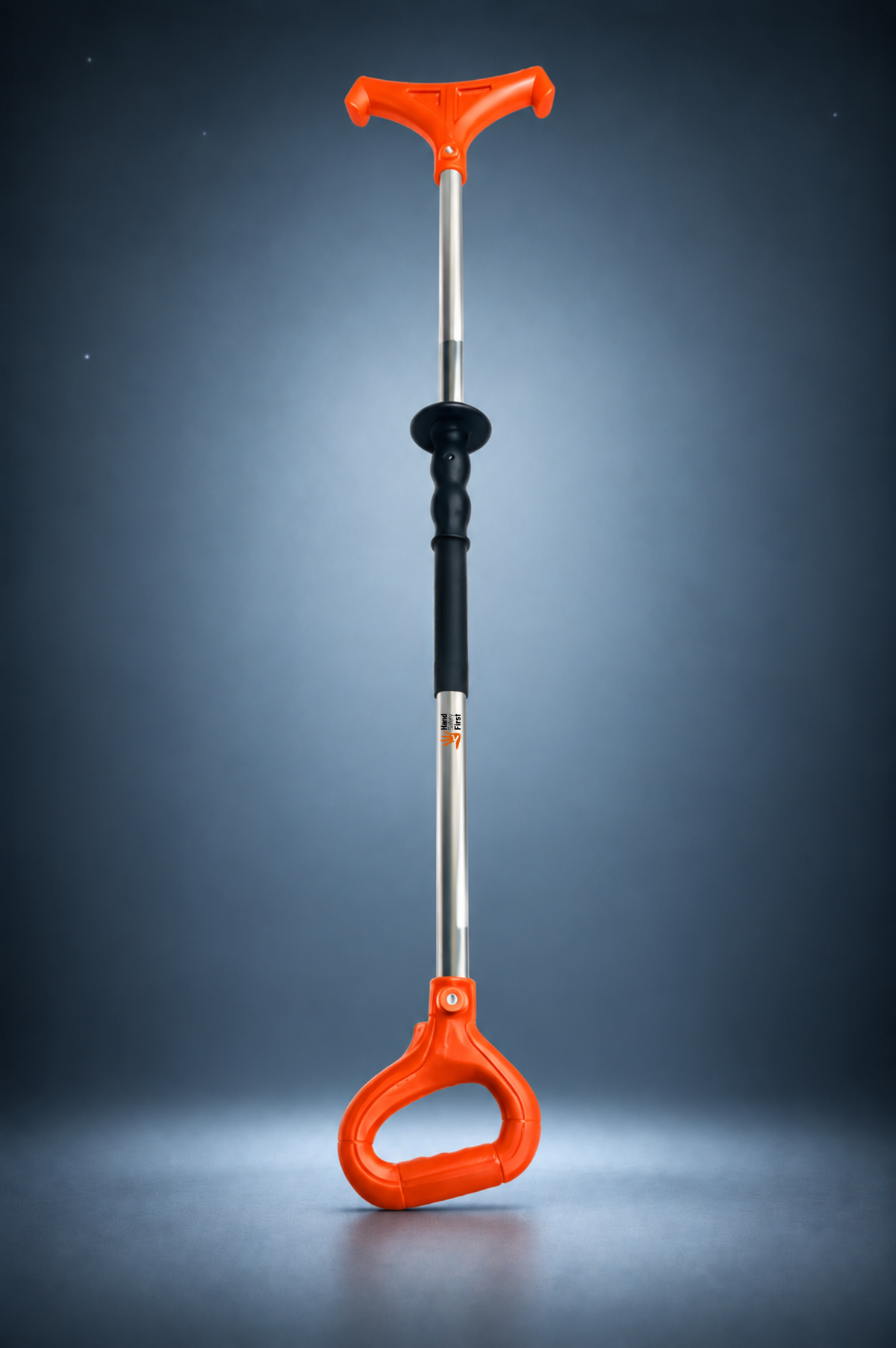

HSF Drill Pipe Casing Tool- Push Pull Tool- Hand Safety First- Hand Safety Tools

HSF Drill Pipe Casing Tool- Push Pull Tool- Hand Safety First- Hand Safety Tools

The HSF Drill Pipe Casing Tool enables drilling crews to safely push, guide, and reposition drill pipe or casing from a distance, reducing pinch point, crush, and line-of-fire hazards during rig floor operations.



View full details

Description

Hands-Free Drill Pipe & Casing Handling Tool for Rig Floor Operations

The HSF Drill Pipe Casing Tool is a purpose-built hands-free safety tool designed to assist drill crews in the safe positioning and movement of large drill pipe, casing, and bundled tubulars during drilling operations.

By allowing operators to push, guide, or reposition tubulars from a safe distance, the tool significantly reduces the risk of pinch points, crush injuries, and hand contact with moving pipe on the rig floor, catwalk, or V-door.

The tool forms an essential part of a Hands-Free / Line-of-Fire safety program, helping drilling contractors minimize hand injuries during pipe handling operations.

Why the HSF Drill Pipe Casing Tool is Important

Handling large tubulars during drilling operations exposes crews to some of the most common causes of hand injuries:

• Pinch points during pipe positioning
• Crush hazards while moving casing or drill pipe
• Swinging loads during rig floor operations
• Manual contact with heavy tubular bundles

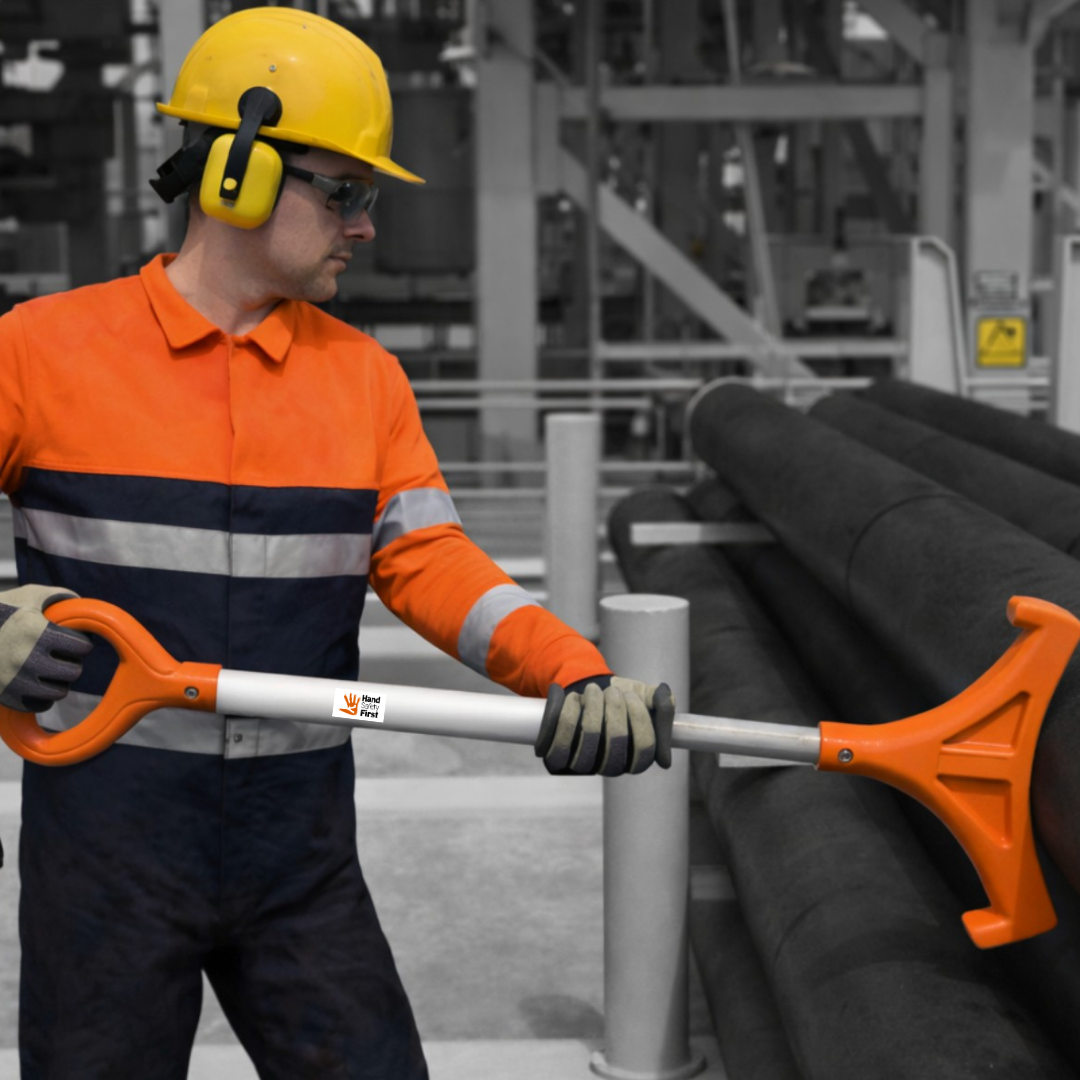

The HSF Drill Pipe Casing Tool allows crews to maintain a safe working distance while guiding or positioning tubulars, improving both safety and control.

Key Features

Heavy-Duty Tubular Handling Head
Specially designed arc-shaped head engages large diameter pipes and casing securely.

Push Control for Pipe Positioning
Allows operators to push or guide drill pipe and casing accurately during alignment.

Tag Line Retrieval Hook
Integrated hook allows operators to retrieve or control tag lines when required.

Durable Industrial Construction
Manufactured using high-strength aluminum shaft and industrial polymer components for reliability in harsh offshore environments.

Hands-Free Safety Design
Keeps workers' hands away from moving pipe and hazardous pinch zones.

Typical Applications

The HSF Drill Pipe Casing Tool is commonly used for:

• Guiding drill pipe and casing during stabbing operations
• Positioning bundles of drill pipe on rig floor or pipe rack
• Handling tubulars in catwalk and V-door areas
• Moving large tubulars during drilling and maintenance operations
• Guiding fishing tools and tubular components

Industries Served

• Offshore drilling rigs
• Land drilling rigs
• Oil & gas drilling contractors
• Drilling service companies
• Rig maintenance contractors

Technical Specifications

Tool Length Options
1200 mm
1500 mm
Custom lengths available on request

Construction

• Heavy-duty aluminum shaft
• Industrial polymer contact head
• High-visibility components
• Replaceable non-slip rubber elements

Handle Options

• Enclosed hand grip
• Non-slip rubber grip

Safety Advantages

Using the HSF Drill Pipe Casing Tool helps organizations:

 Reduce hand and finger injuries
 Improve compliance with Hands-Free policies
 Maintain safe distance from moving pipe
 Improve pipe positioning accuracy
 Reduce exposure to line-of-fire hazards

Best Practice for Safe Use

• Engage the tool when pipe is positioned atwaist height
• Maintain safe distance from suspended loads
• Usetag lines to stabilize moving pipe before engagement• Always wear appropriate PPE
• Tool is designed forguiding and positioning only — not for leverage

Why Choose HSF Hand Safety Tools

HSF tools are developed to support hands-free working environments on drilling rigs, helping companies move beyond PPE-only safety programs toward engineering controls that physically remove workers from hazard zones.

The HSF Drill Pipe Casing Tool helps drilling contractors implement safer pipe handling practices across the rig floor.
