The HSF Drill Pipe Connection Guide helps drilling crews safely align and guide drill pipe during connections, reducing hand exposure, thread damage, and dropped object risks on the rig floor.

View full details

Description

Hands-Free Tool for Safe Drill Pipe Alignment and Connection

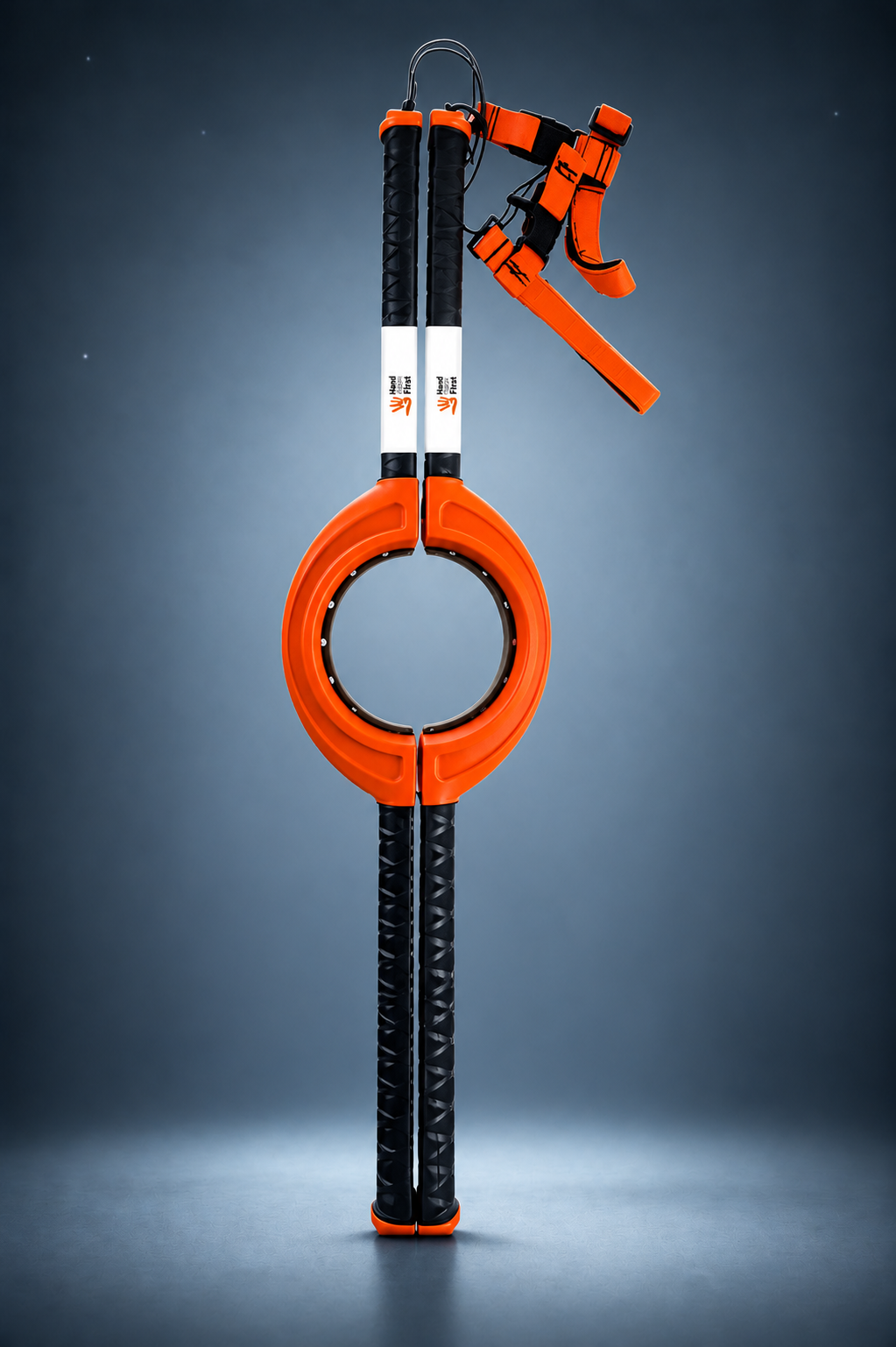

The HSF Drill Pipe Connection Guide is designed to assist drilling crews in safely aligning and guiding drill pipe during connection operations on the rig floor.

During pipe stabbing and connection, maintaining alignment between two pipe sections is critical. The HSF connection guide helps stabilize the drill pipe and guide the pin into the box connection, reducing the risk of thread damage, dropped objects, or hand injuries. Tools like stabbing or connection guides are widely used in drilling operations to align pipe sections and ensure smooth male-to-female thread engagement.

By allowing operators to maintain control of the pipe without placing hands near pinch points or rotating equipment, the tool supports safer rig floor operations and improves efficiency during pipe connections.

Why a Drill Pipe Connection Guide is Important

Making drill pipe connections is a routine but high-risk activity on drilling rigs. Misaligned pipe during stabbing can cause:

• Pinch and crush injuries
• Thread damage on tool joints
• Delays during pipe connection
• Increased wear on drilling equipment

A connection guide helps keep the pipe properly aligned while maintaining a safe buffer zone between personnel and the load.

Key Features

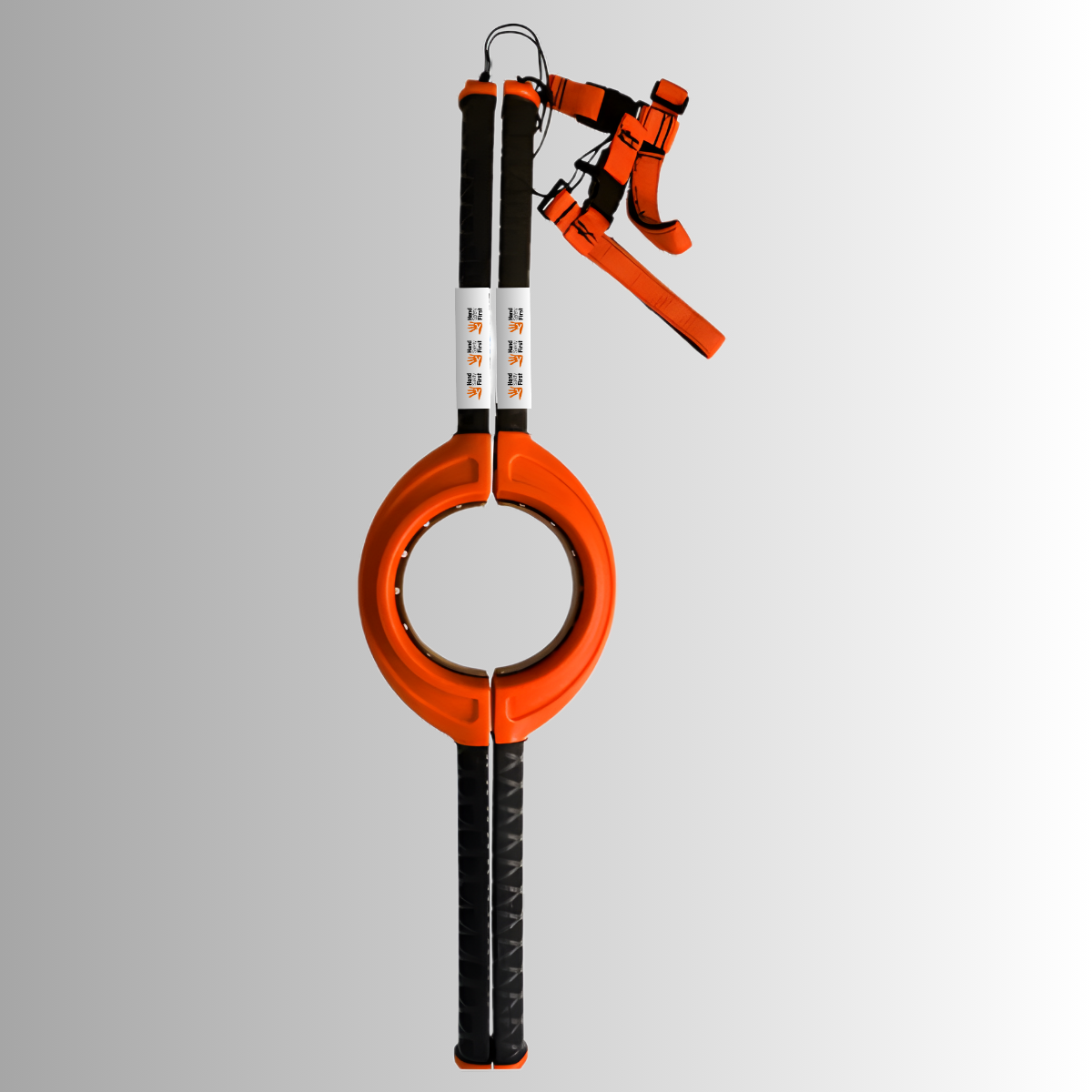

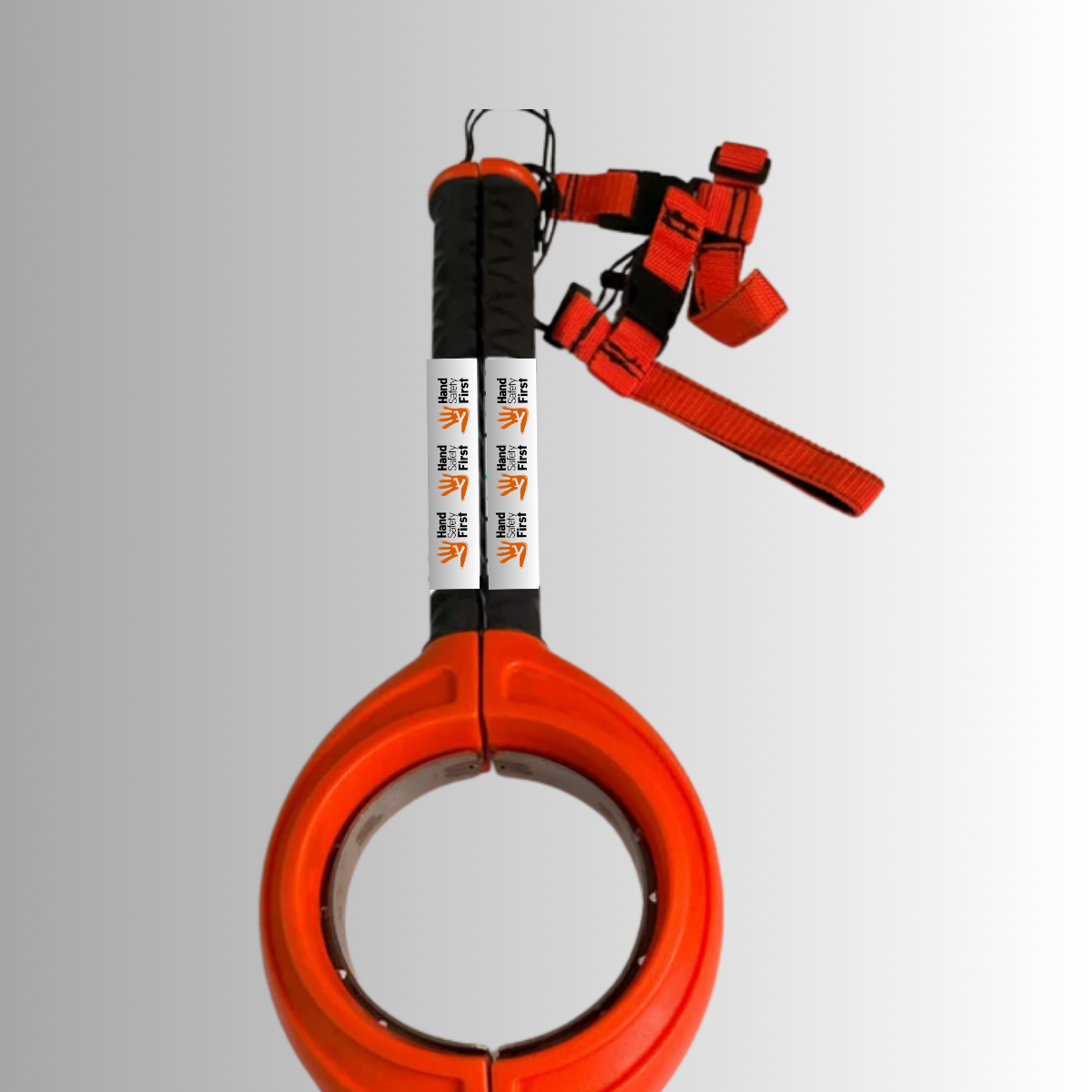

Dual-Component Connection Guide

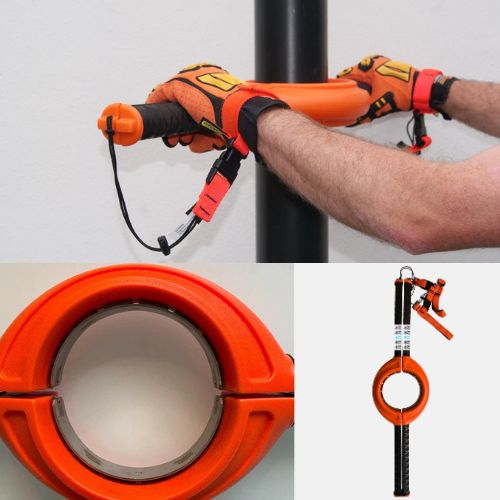

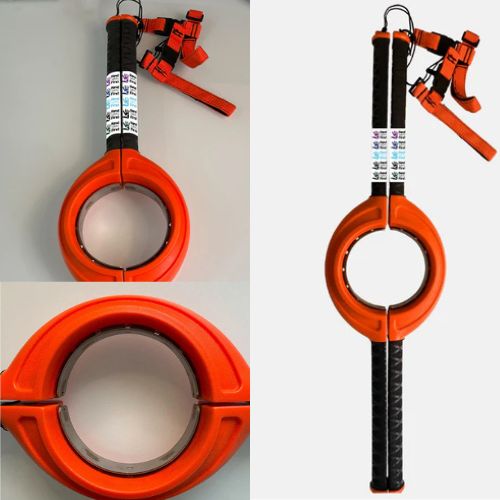

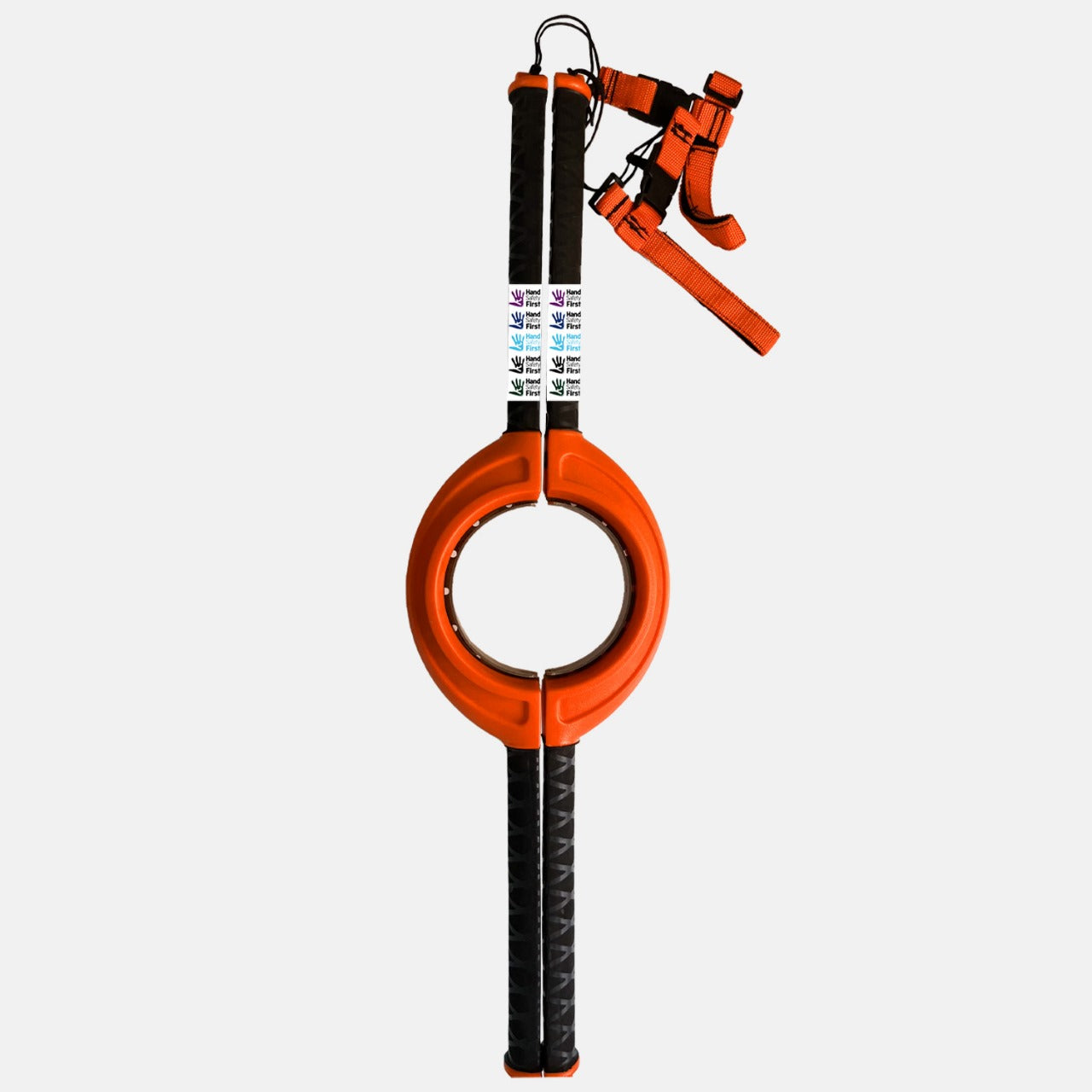

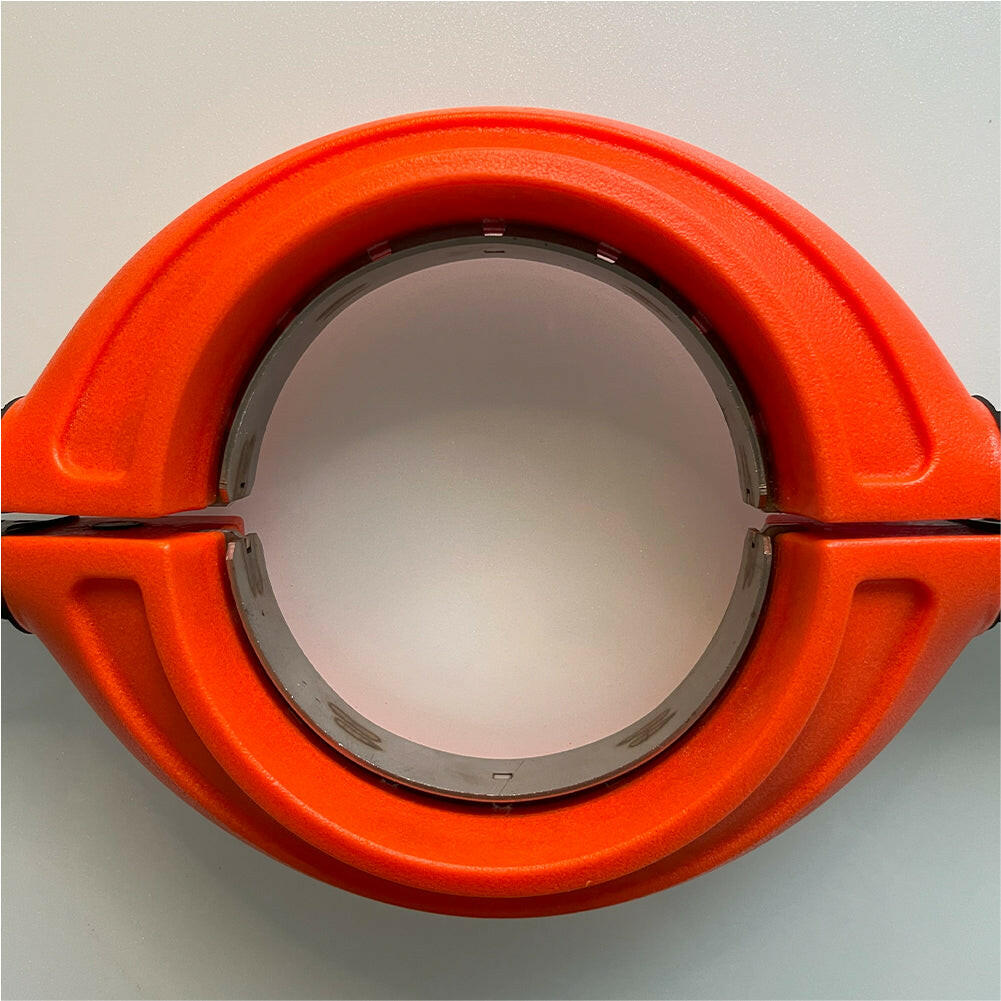

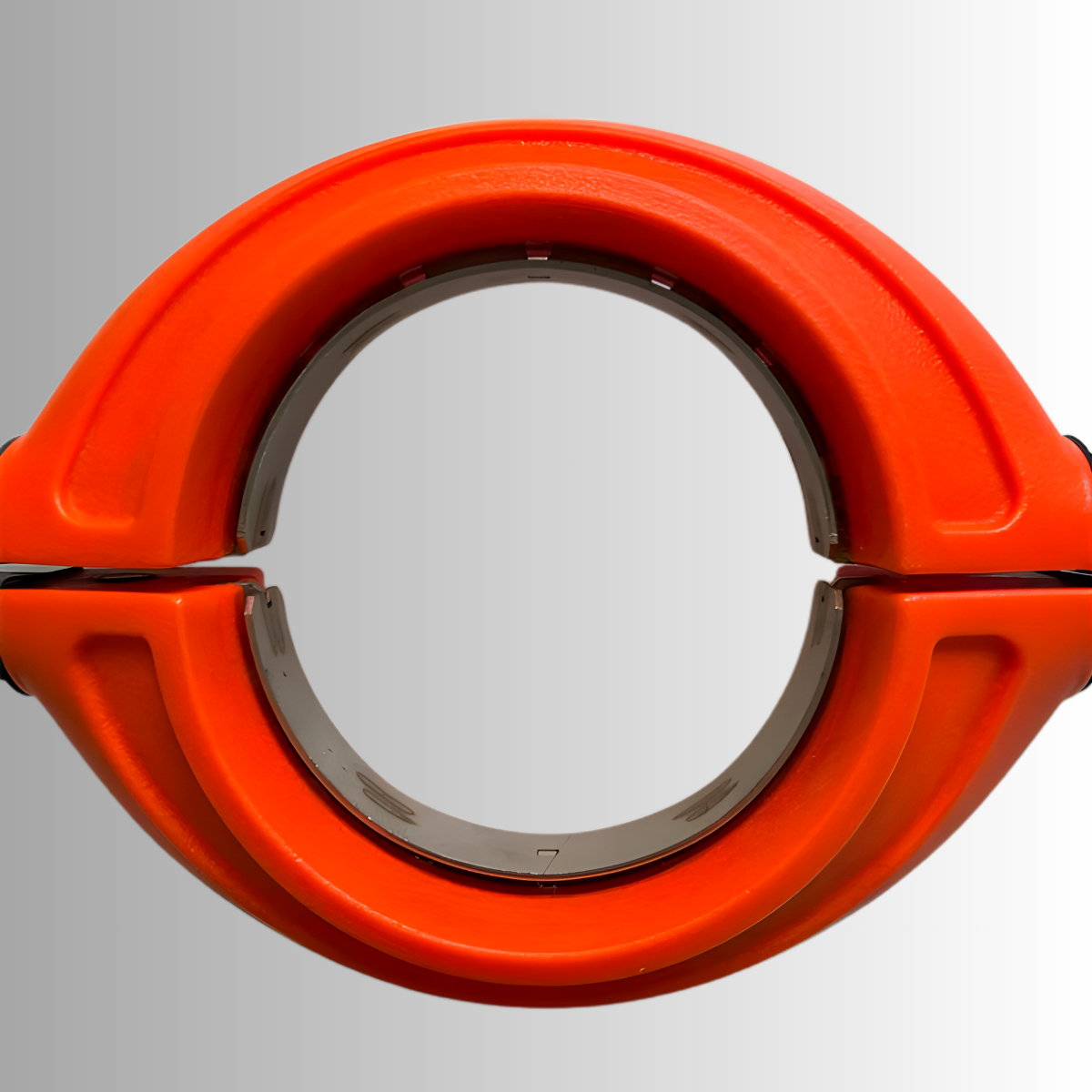

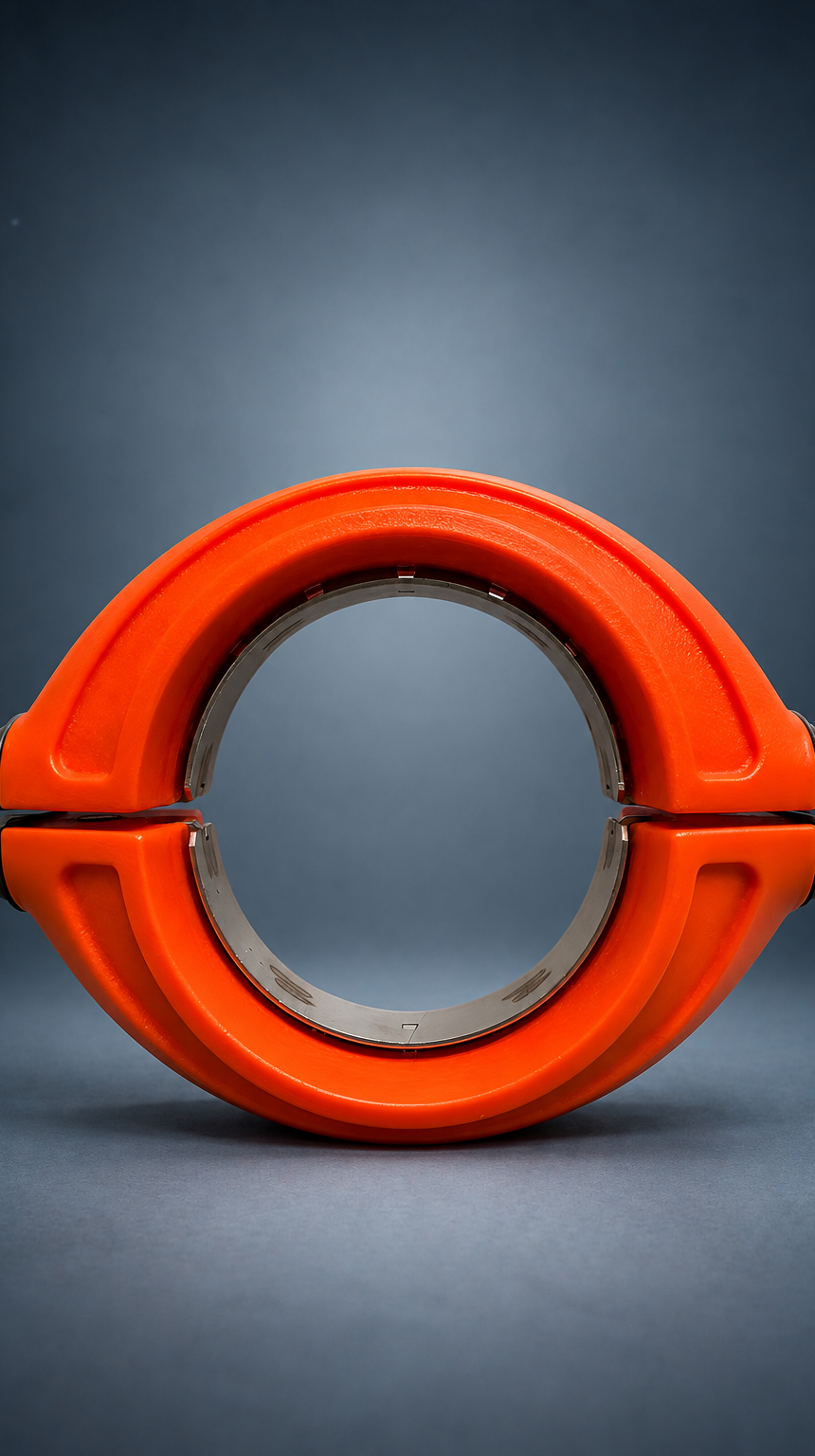

The tool consists of two matching components that clamp around the drill pipe and are operated by two personnel, providing improved stability during connection operations.

Improved Pipe Alignment

Helps guide the upper pipe section into the lower connection smoothly, reducing the risk of thread damage.

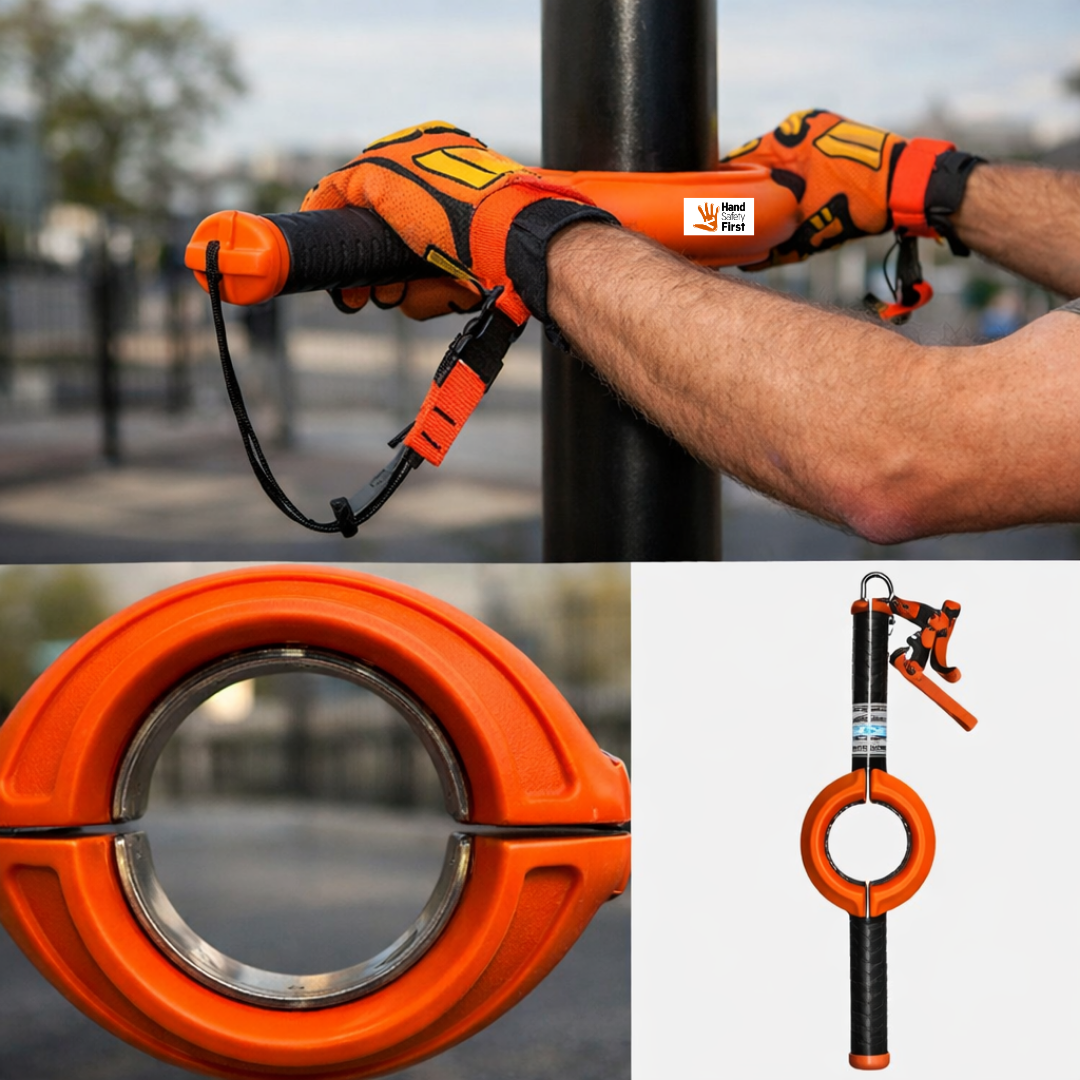

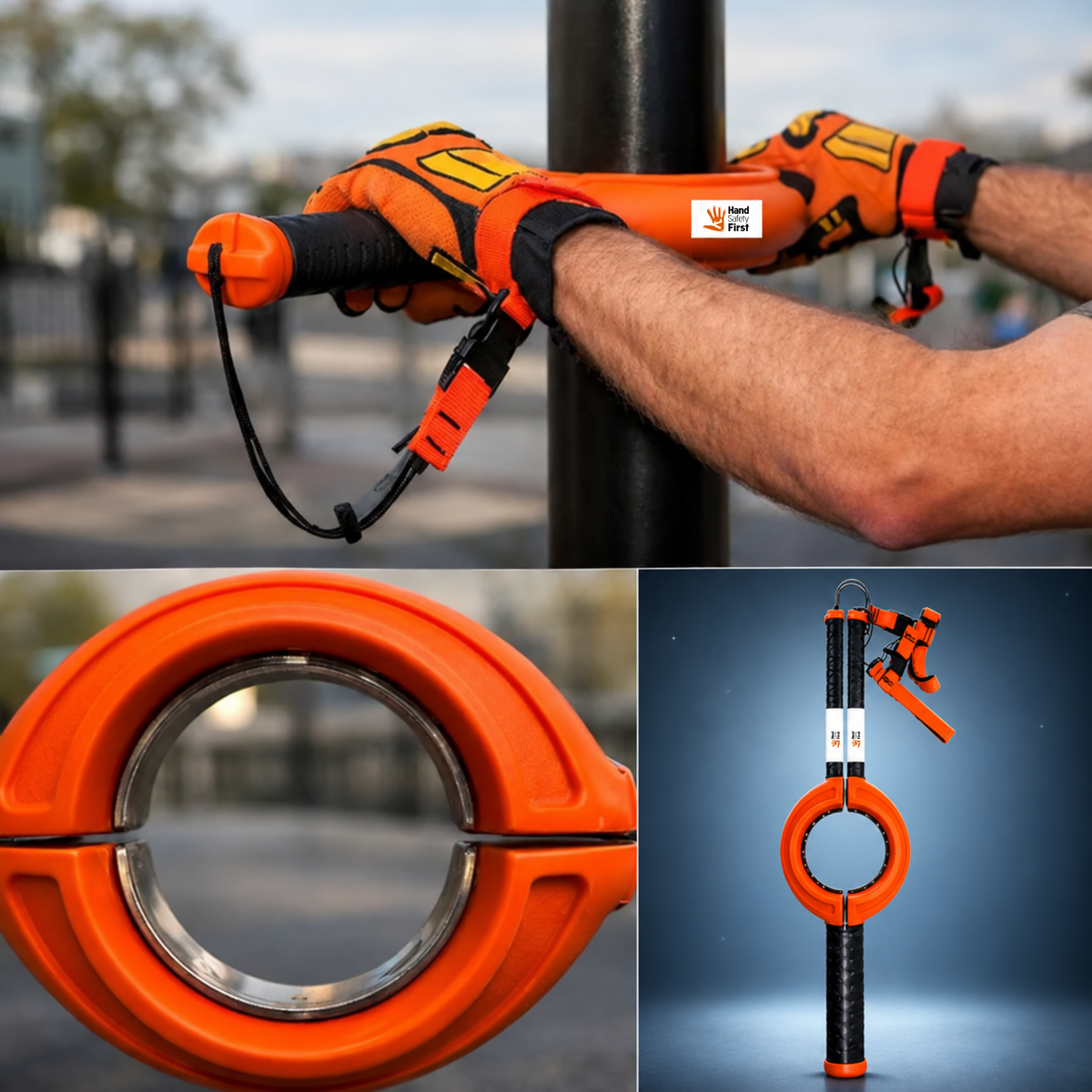

Hands-Free Safety

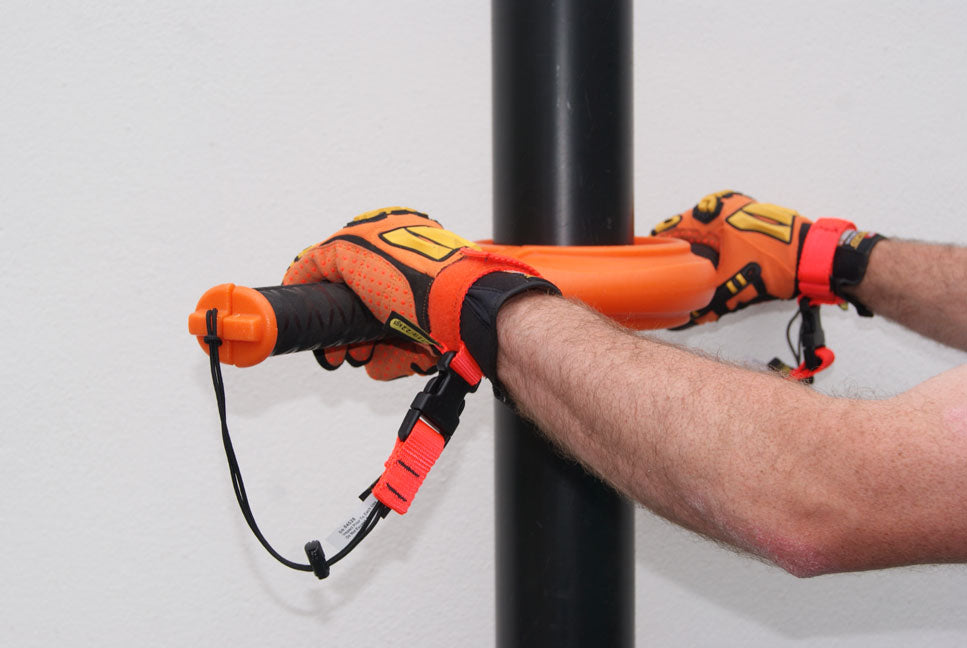

Handle design allows operators to remain clear of pinch points and drilling fluids while guiding the pipe during stabbing.

Enhanced Stability During Connections

The tool stabilizes the drill stand while engaging with the stand positioned in the rotary slips.

Durable Industrial Construction

Built using heavy-duty materials designed to withstand harsh drilling environments, including exposure to drilling fluids, oil, and saltwater.

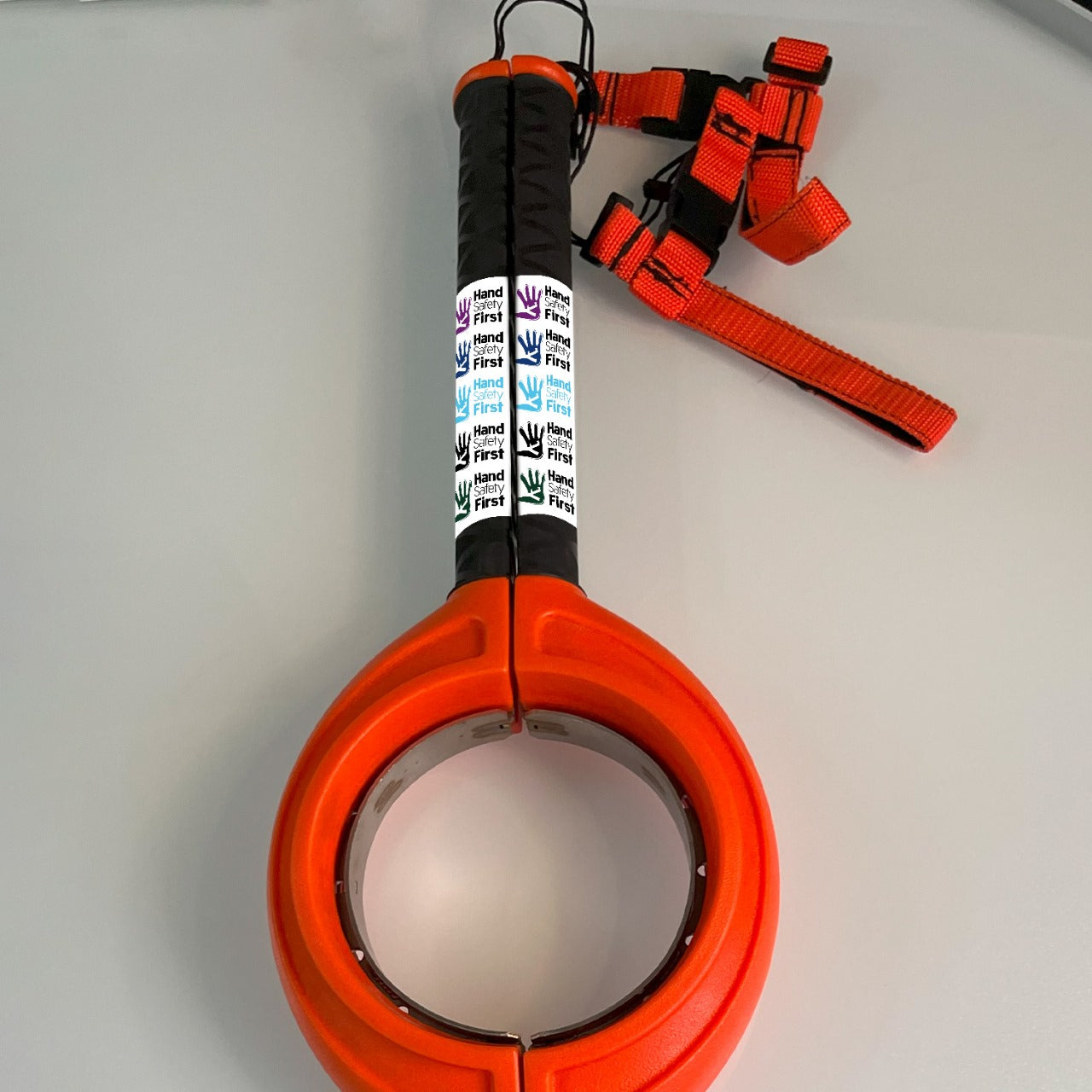

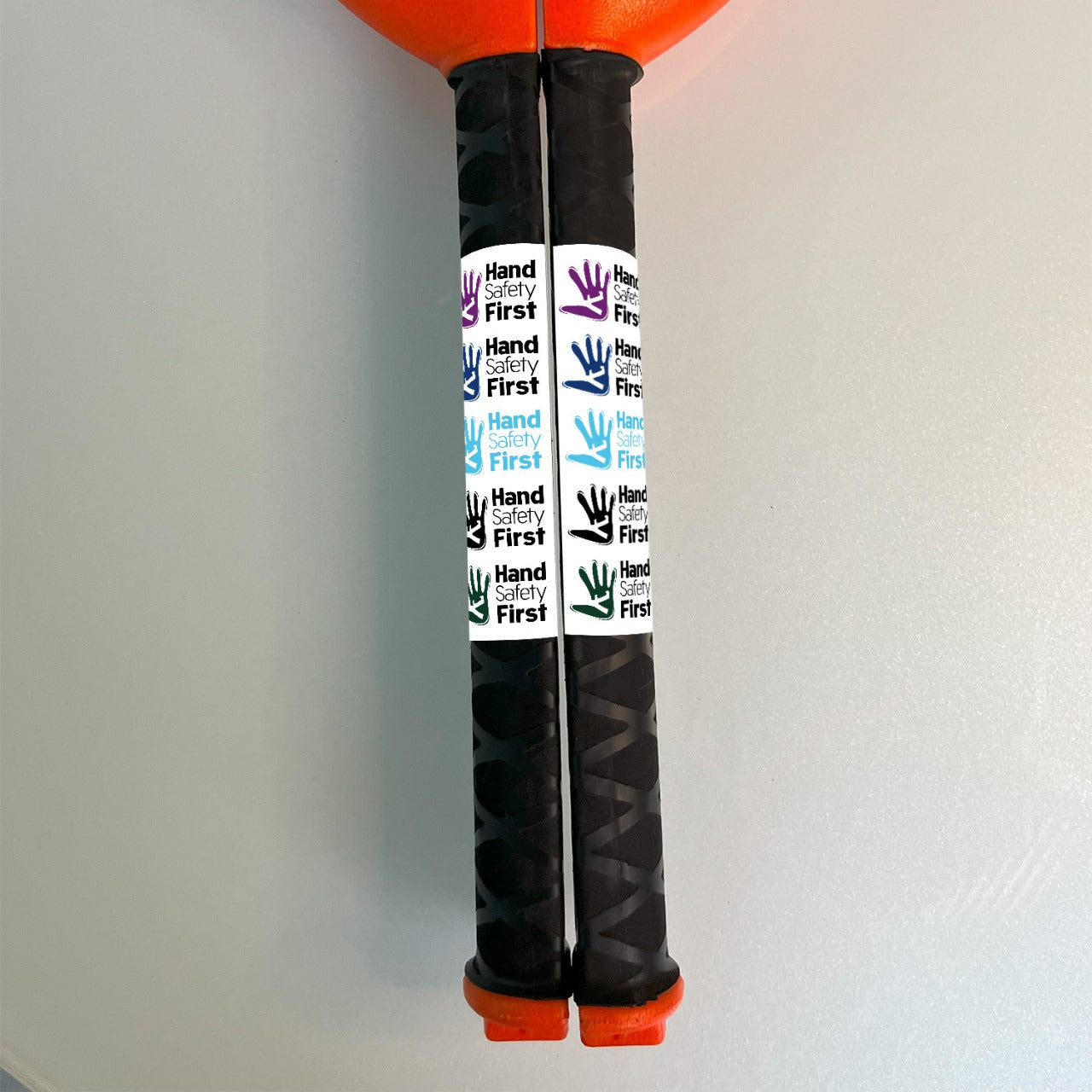

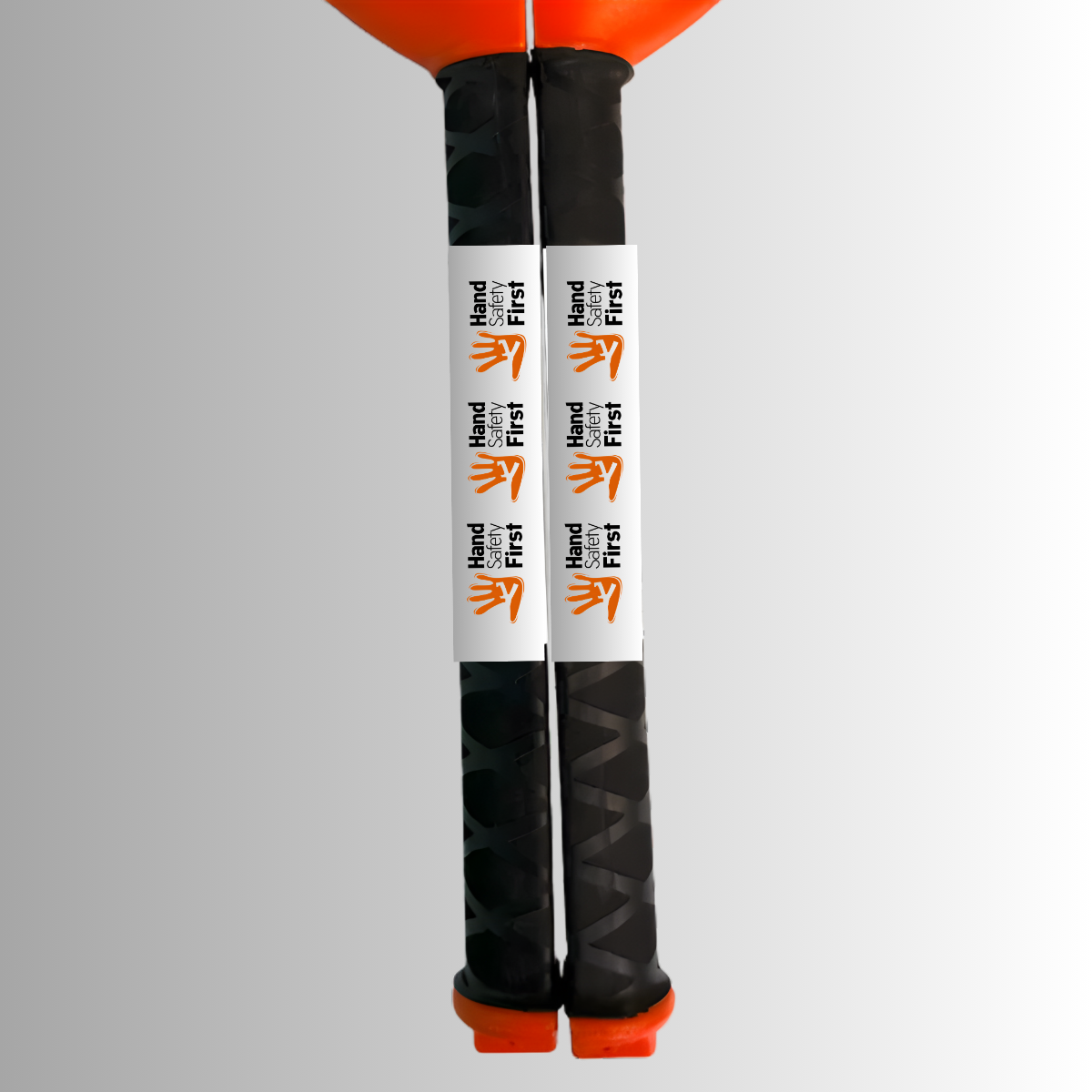

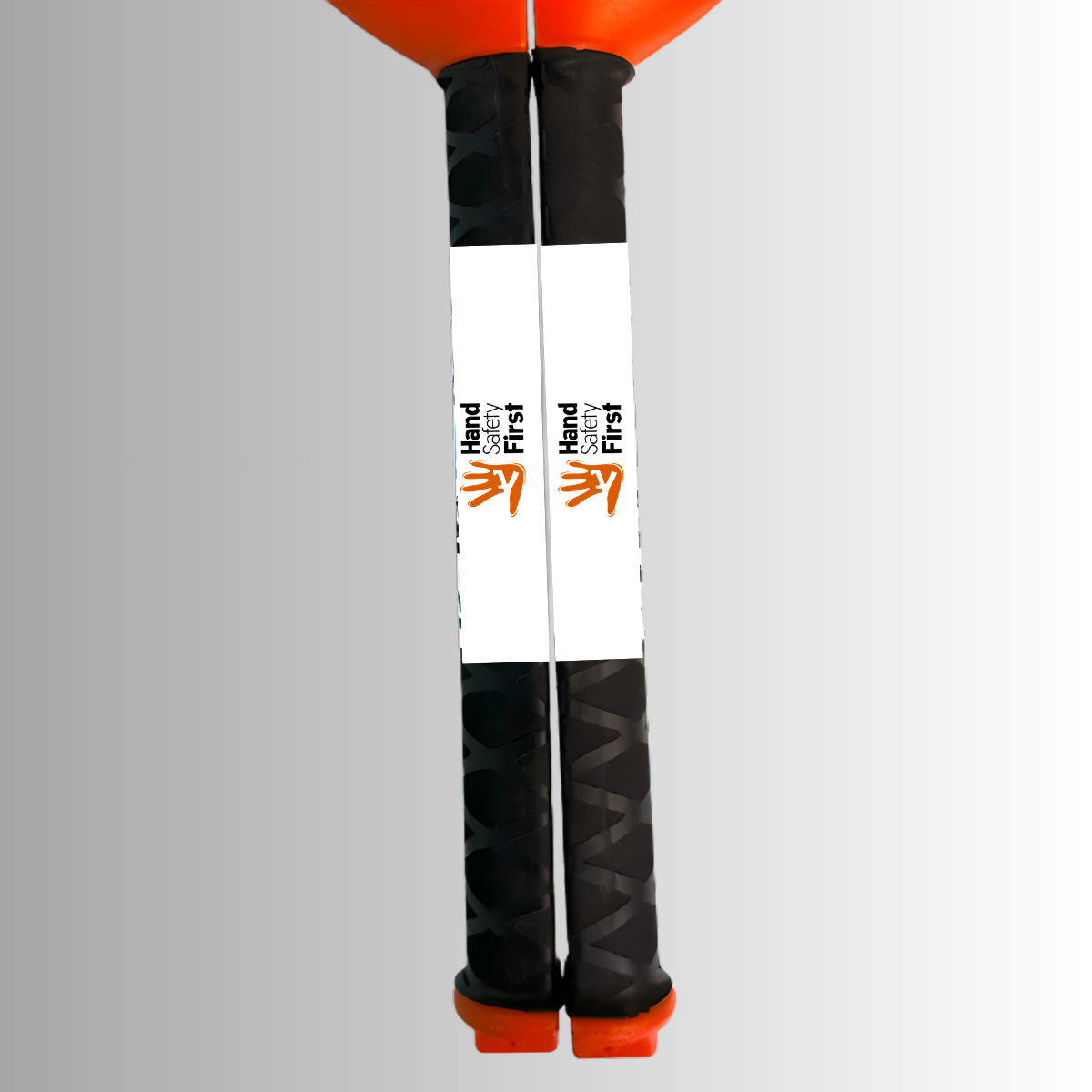

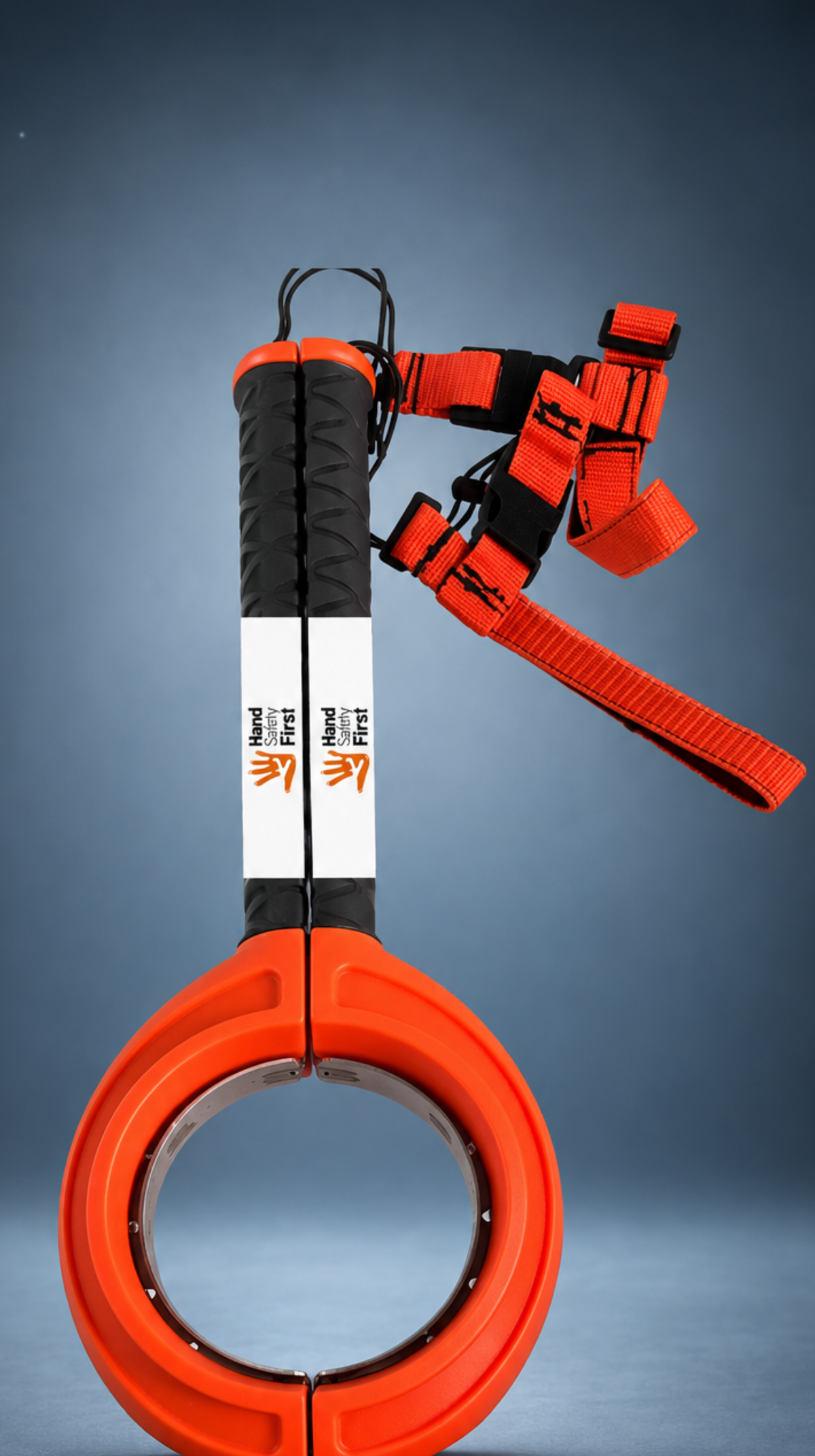

Ergonomic Operator Handles

Handles provide controlled grip and safe positioning while maintaining safe distance from moving pipe

Typical Applications

The HSF Drill Pipe Connection Guide is used in drilling operations including:

• Drill pipe stabbing and connection
• Pipe alignment during make-up operations
• Guiding drill stands into rotary table slips
• Stabilizing tubulars during rig floor handling
• Preventing thread damage during pipe connection

Industries Served

HSF drill pipe handling tools are used across multiple sectors including:

• Offshore drilling rigs
• Onshore drilling rigs
• Oil & gas exploration and production
• Well servicing operations
• Heavy industrial pipe handling

Benefits of Using a Connection Guide

• Reduces hand and finger injuries during pipe stabbing
• Improves alignment of drill pipe connections
• Helps prevent thread damage and downtime
• Increases efficiency during connection operations
• Supports hands-free rig floor safety practices

Why Choose HSF – Hand Safety Firsta

HSF tools are designed to remove direct hand contact from hazardous drilling operations. Instead of relying solely on PPE, HSF products introduce engineering-based safety controls that keep personnel away from pinch points and suspended loads.

The HSF Drill Pipe Connection Guide supports safer pipe handling and connection operations while helping drilling contractors move toward hands-free rig floor practices and zero hand injury programs.
