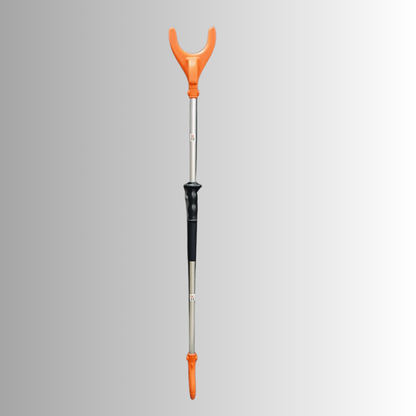

HSF Drill Pipe Handling Tool- Push Pull Tool- Hand Safety First- Hand Safety Tools

HSF Drill Pipe Handling Tool- Push Pull Tool- Hand Safety First- Hand Safety Tools

The HSF Drill Pipe Handling Tool is a hands-free safety tool designed to help drilling crews guide, position, and control suspended drill pipes during rig floor operations. It allows operators to push, pull, and stabilize pipes from a safe distance, reducing direct hand contact with moving tubulars. This significantly lowers the risk of pinch points, crush injuries, and line-of-fire hazards. Built with a durable aluminum shaft and ergonomic grip, the tool provides strong control and reliability in demanding drilling environments. By enabling safer pipe handling practices, the tool helps improve overall rig floor safety and supports hand injury prevention initiatives.

View full details

Product Overview

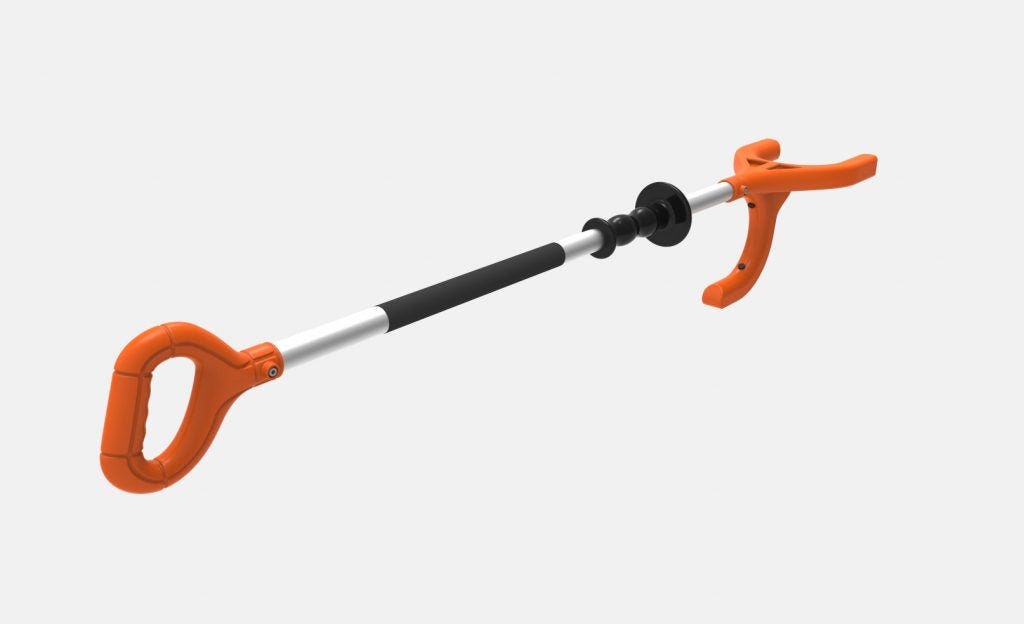

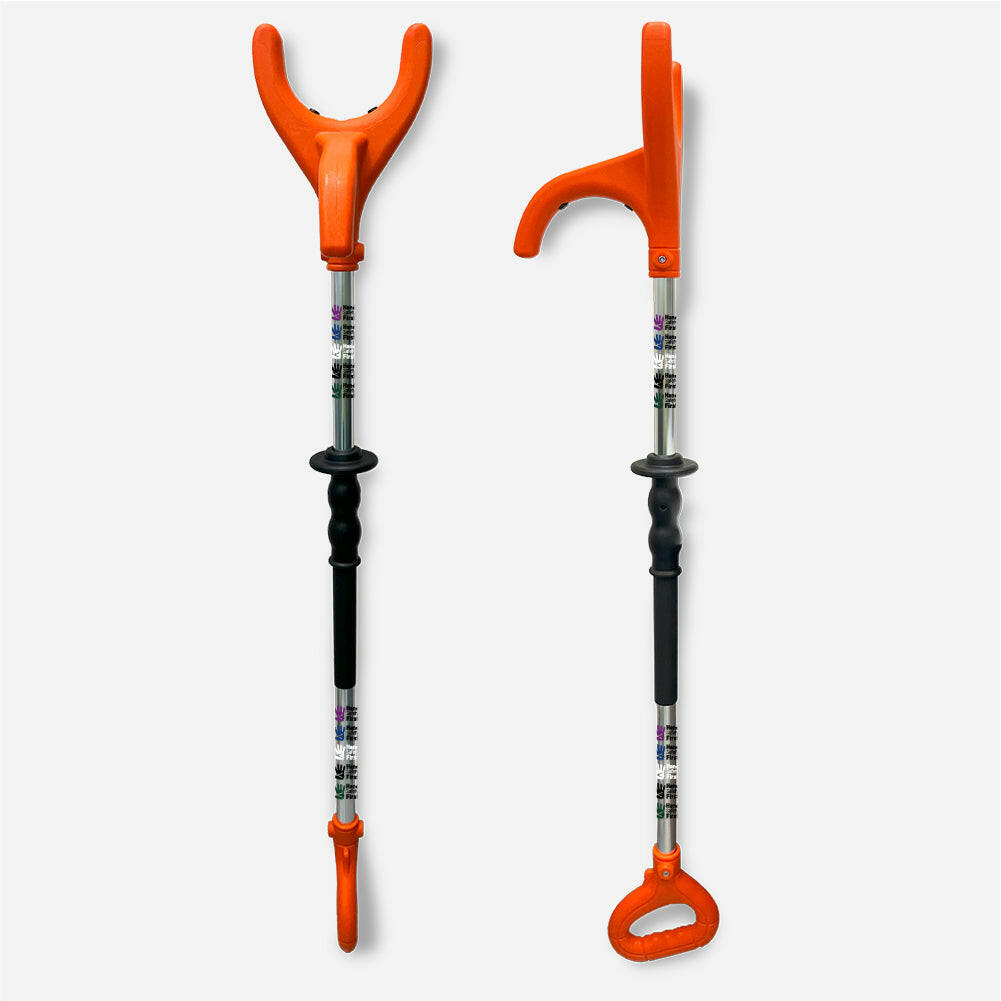

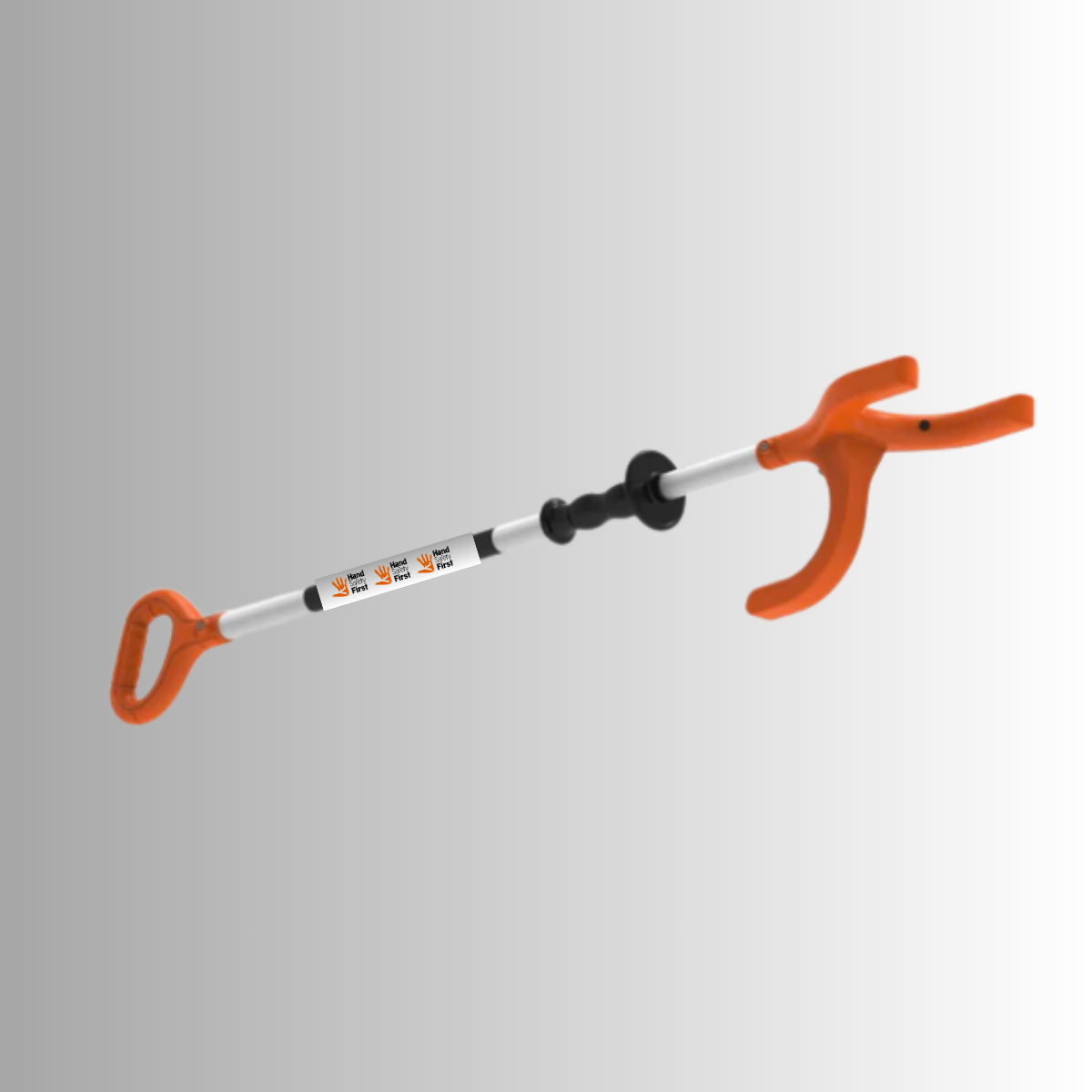

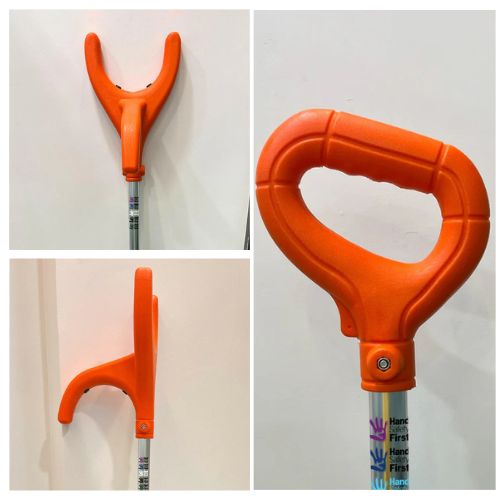

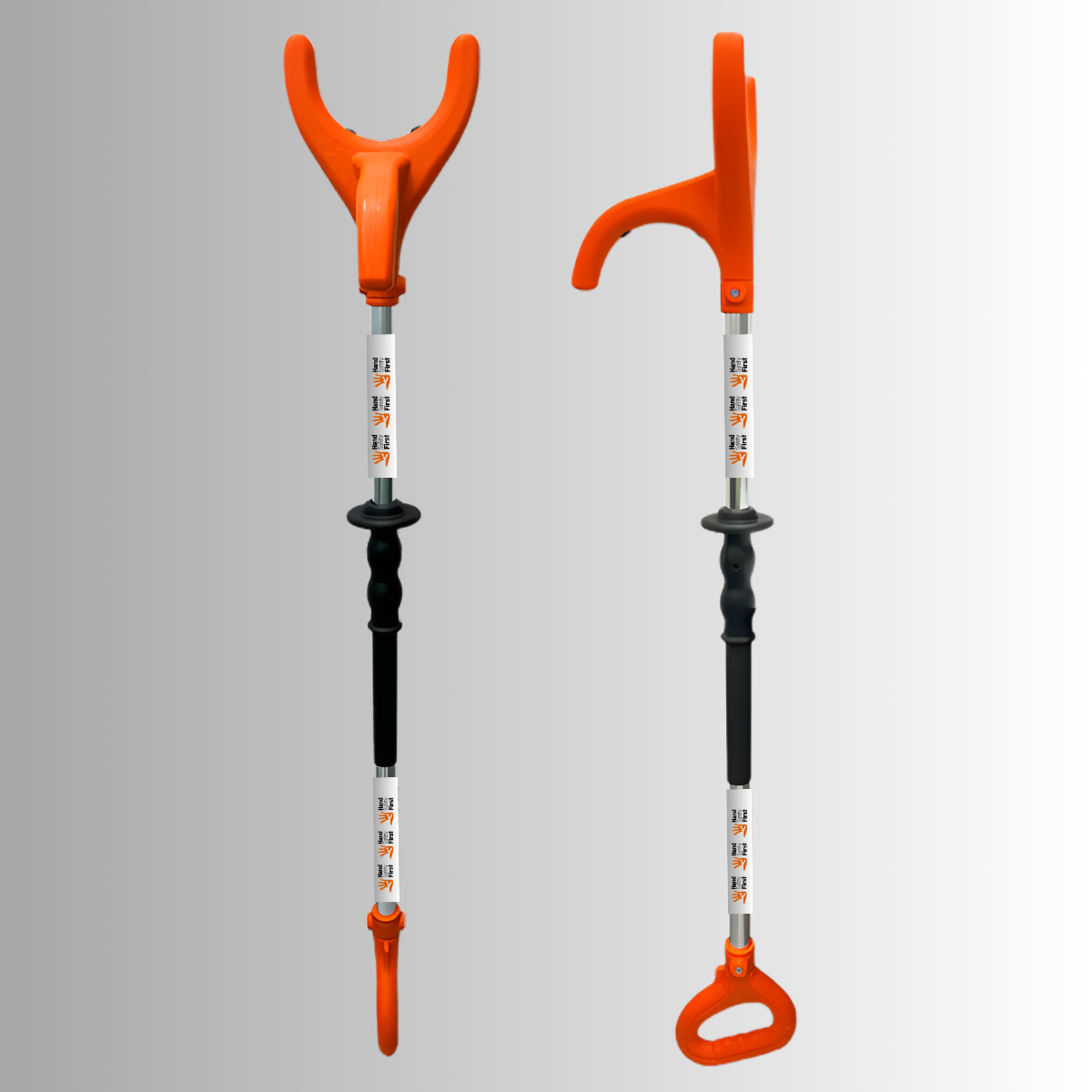

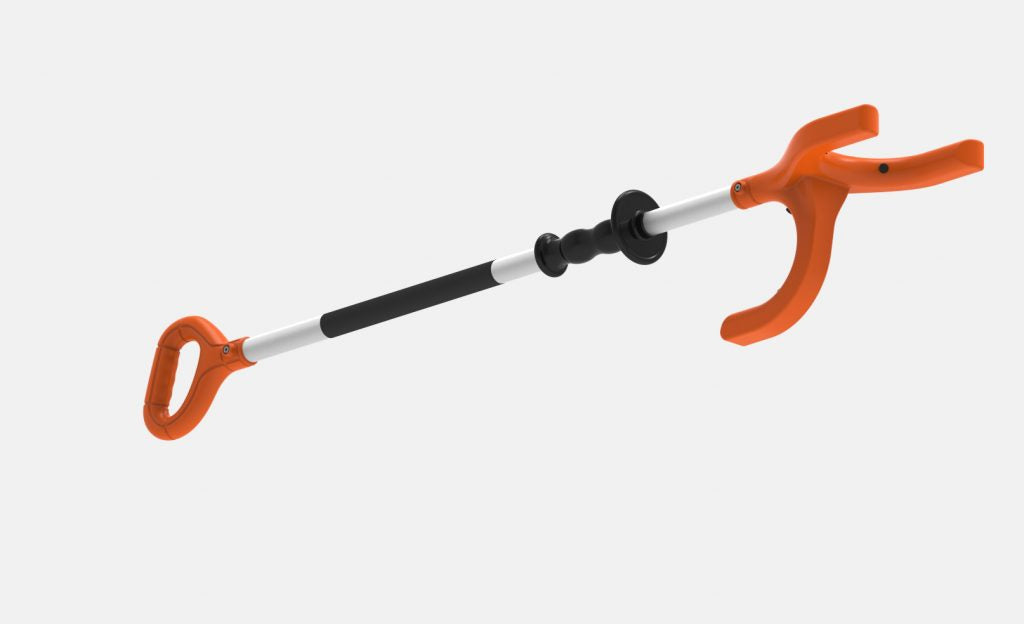

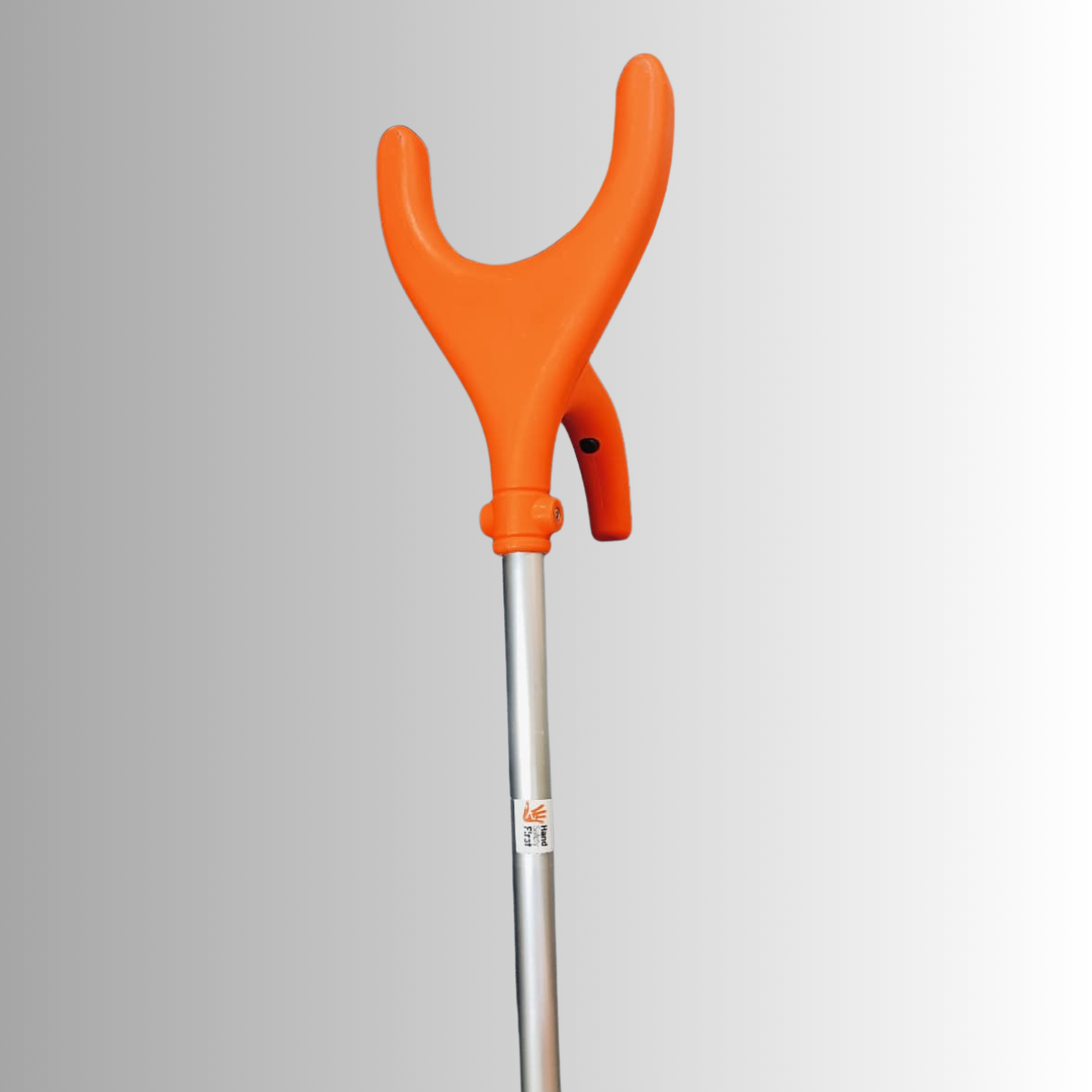

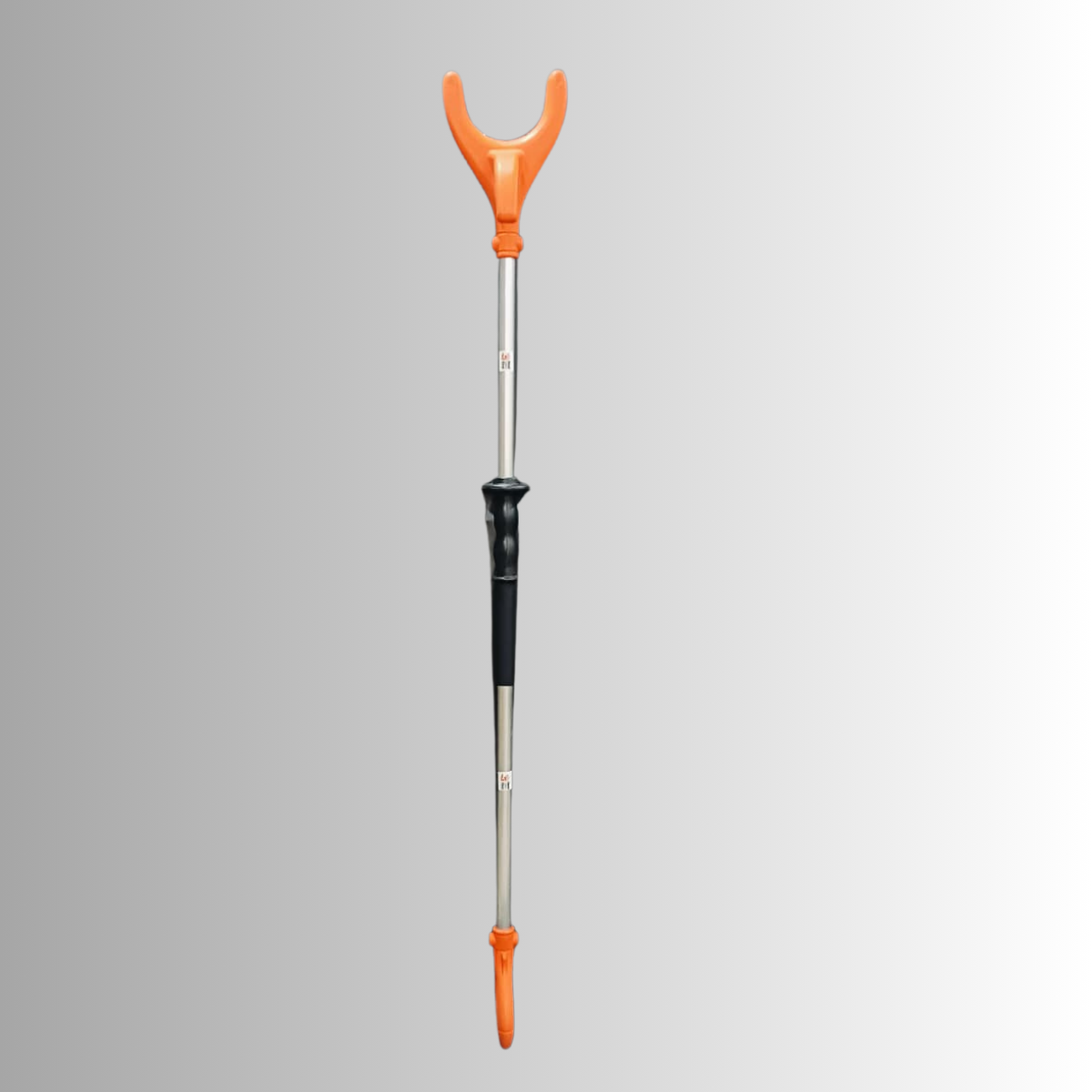

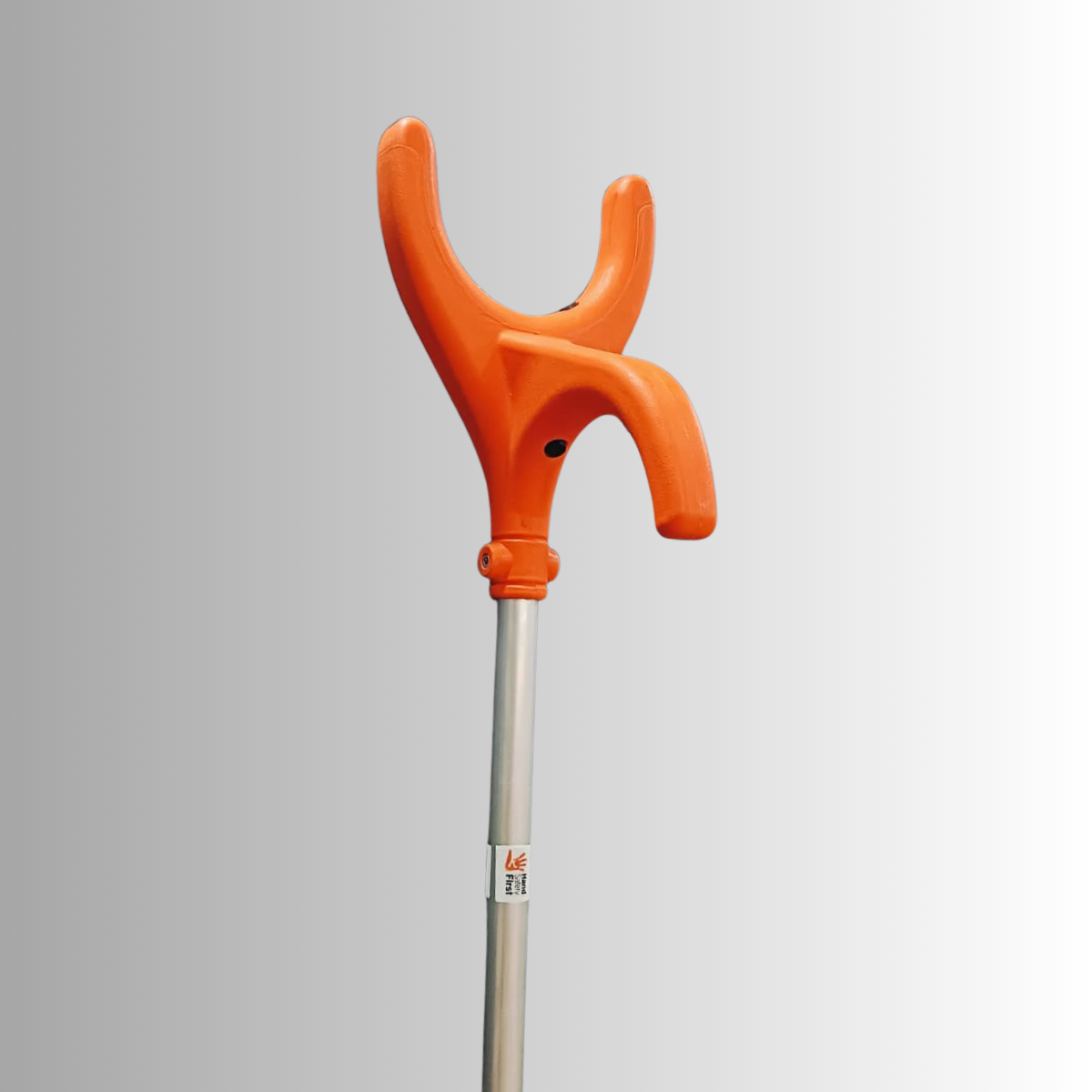

HSF Drill Pipe Handling Tool

Part no : HSF-PHT-1200/1500

Hands-Free Tool for Safe Drill Pipe Positioning and Control

The HSF Drill Pipe Handling Tool is designed to help drilling crews safely guide and control suspended drill pipe during rig floor operations.

By enabling operators to push, pull, and stabilize drill pipe from a safe distance, the tool eliminates the need for direct hand contact with moving tubulars. This significantly reduces the risk of pinch points, crush injuries, and line-of-fire hazards during drilling operations.

The tool supports safer pipe handling practices on both the rig floor and catwalk area, allowing crews to maintain full control of suspended pipe while remaining outside hazardous zones.

Why a Drill Pipe Handling Tool is Important

Handling suspended drill pipe is one of the highest-risk activities on a drilling rig. Pipe movement during lifting, positioning, and landing can expose workers to serious injuries if handled manually.

The HSF Drill Pipe Handling Tool allows operators to maintain safe working distance while guiding pipe with precision. This hands-free approach supports safer drilling operations and helps prevent common hand injuries.

Typical safety benefits include:

• Eliminates direct hand contact with drill pipe
• Improves control when positioning suspended tubulars
• Reduces pinch and crush hazards
• Maintains safe buffer zone between worker and load
• Works effectively alongside tag lines during lifting operations

Key Features

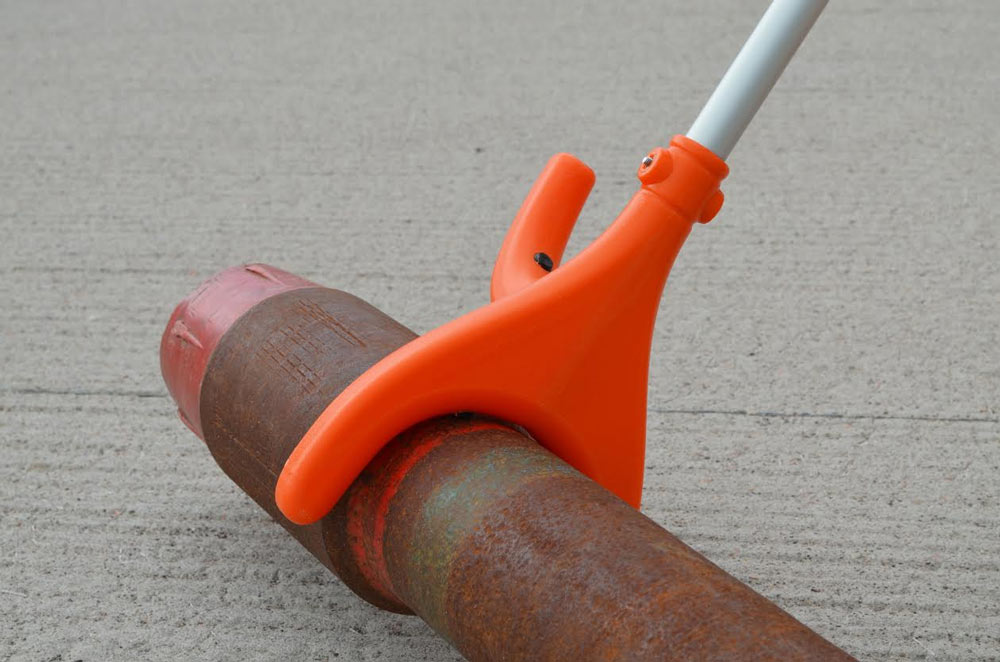

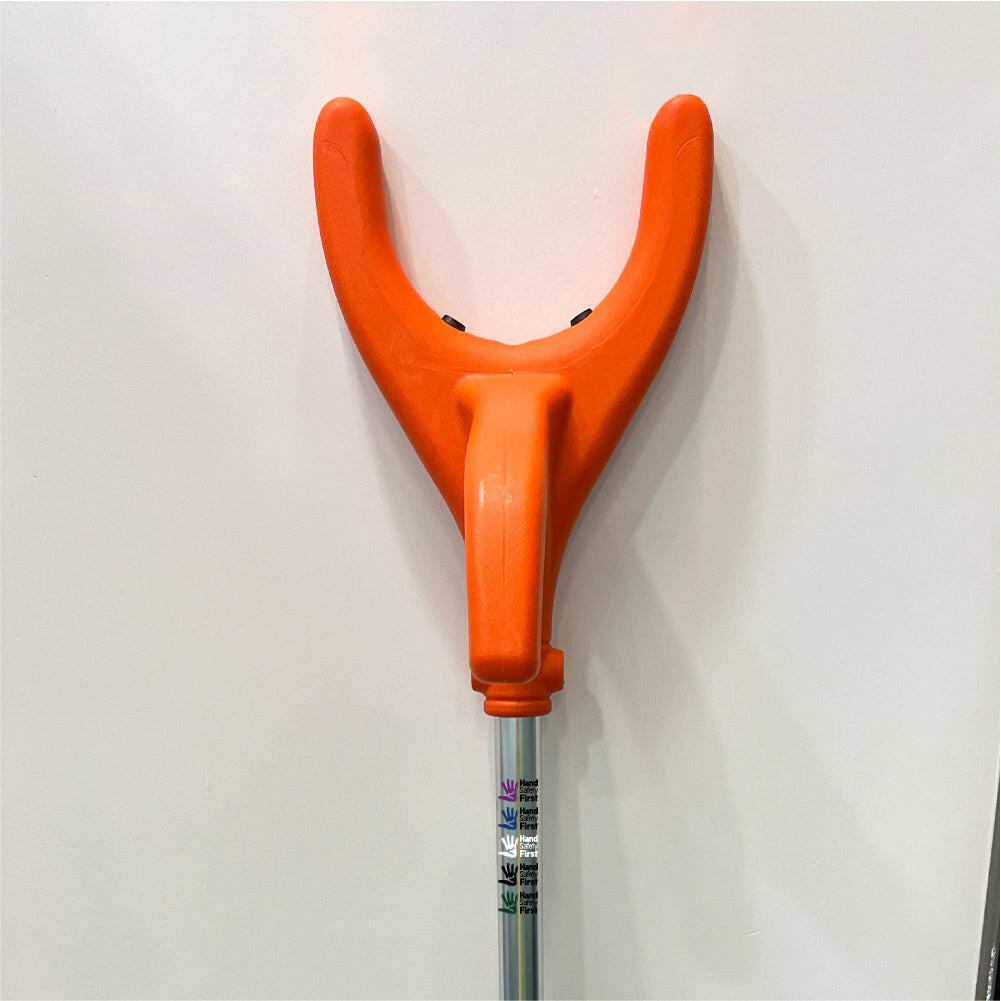

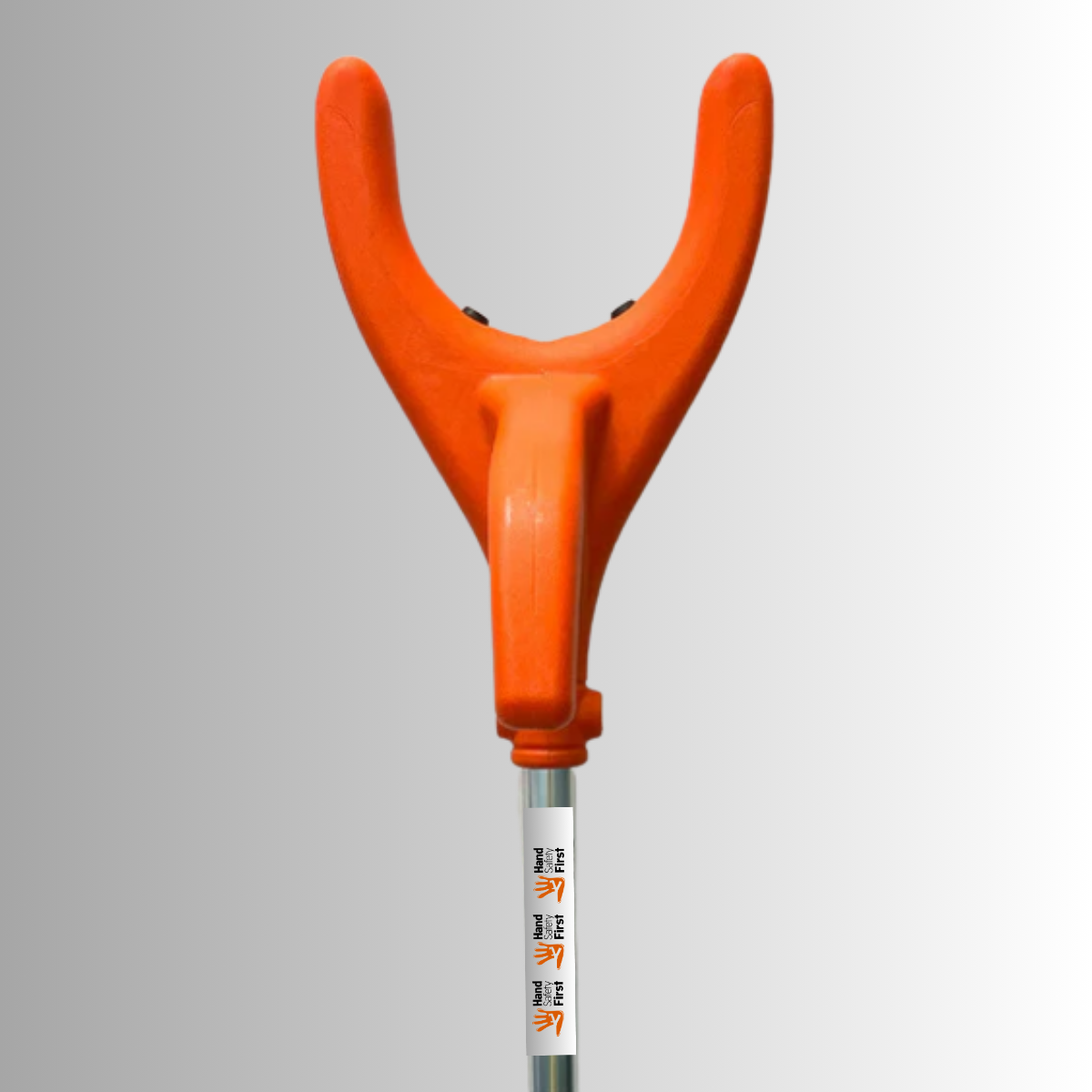

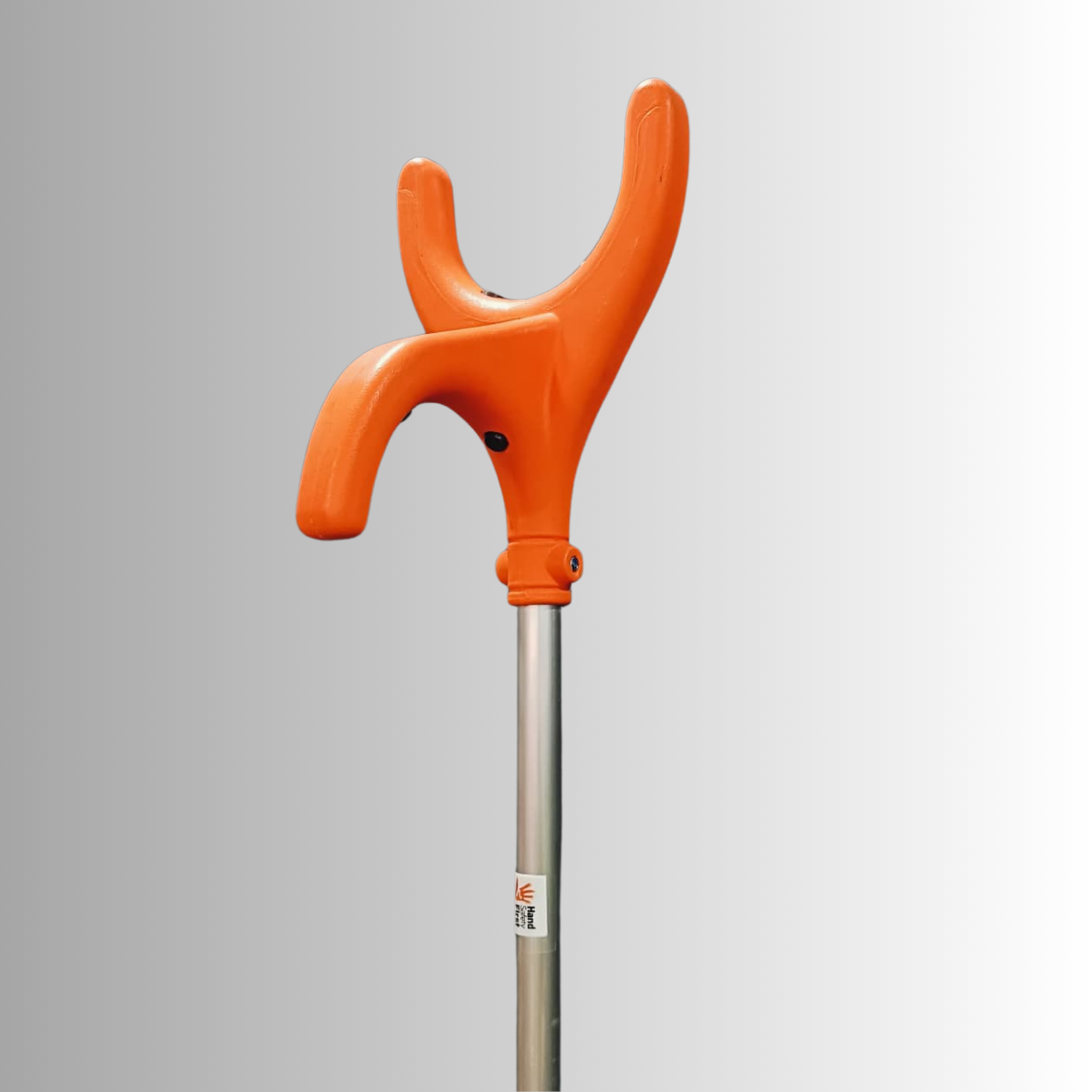

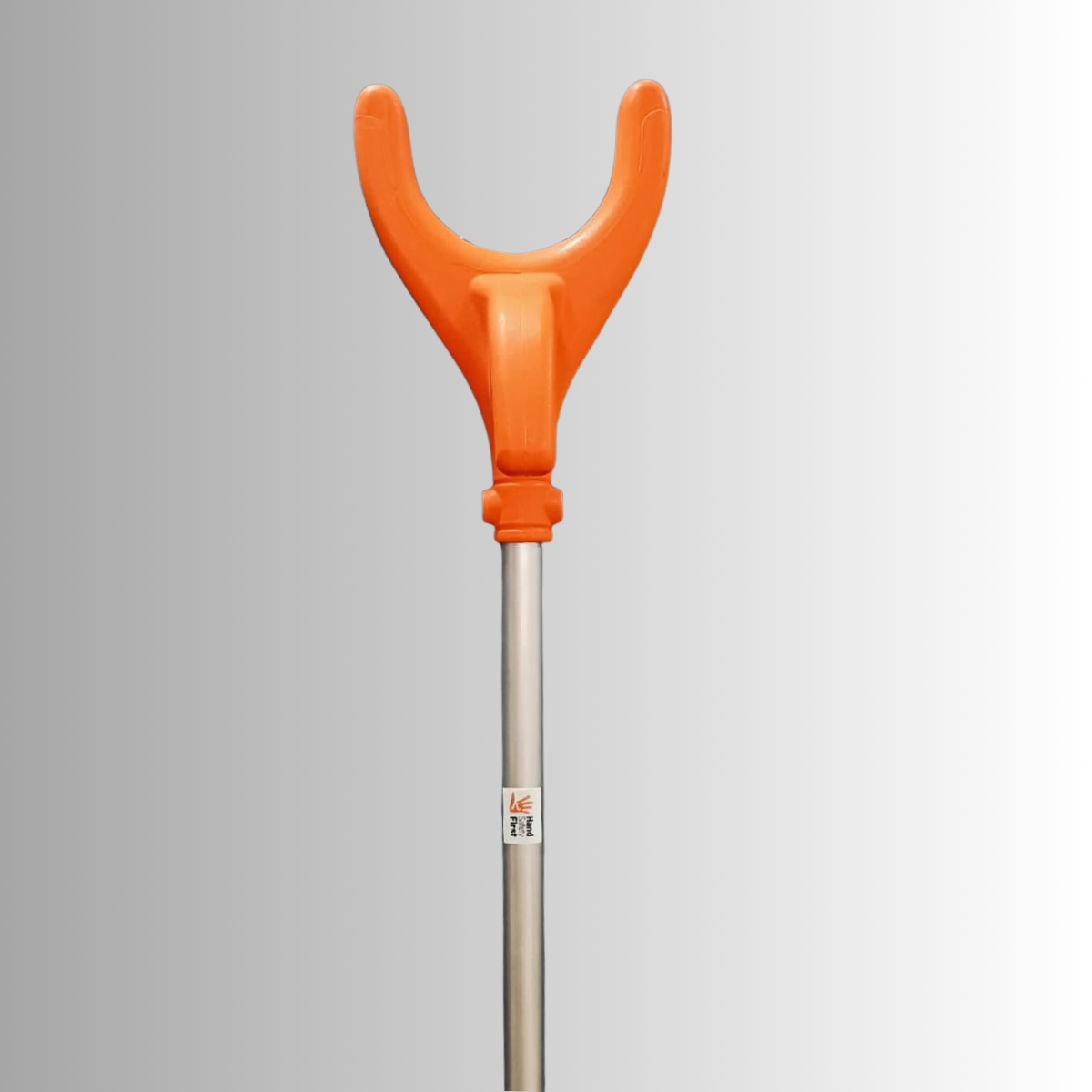

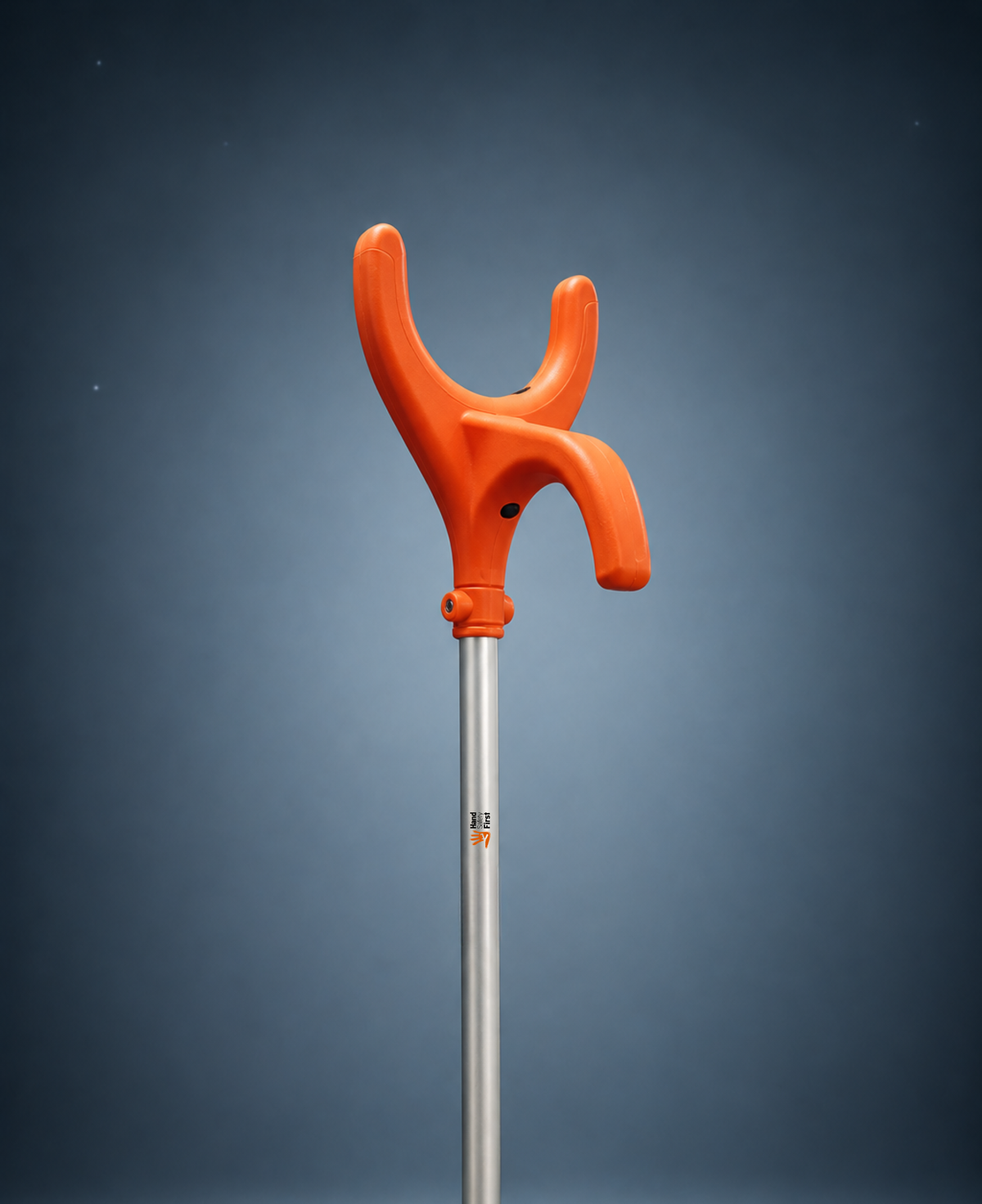

Dual Pipe Engagement Design

Specially designed dual contact surfaces help stabilize suspended drill pipe during positioning.

Push / Pull Pipe Control

Operators can guide pipe using controlled push or pull movements, allowing accurate pipe positioning.

Designed for Common Drill Pipe Sizes

Capable of safely handling suspended drill pipe and hoses up to approximately 5⅞ inches in diameter.

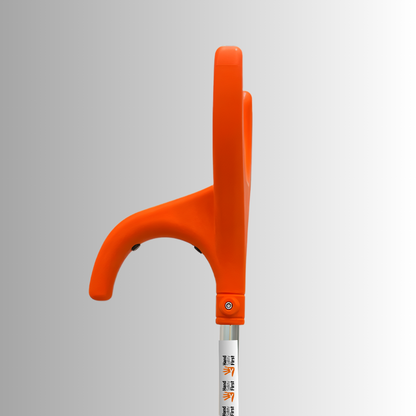

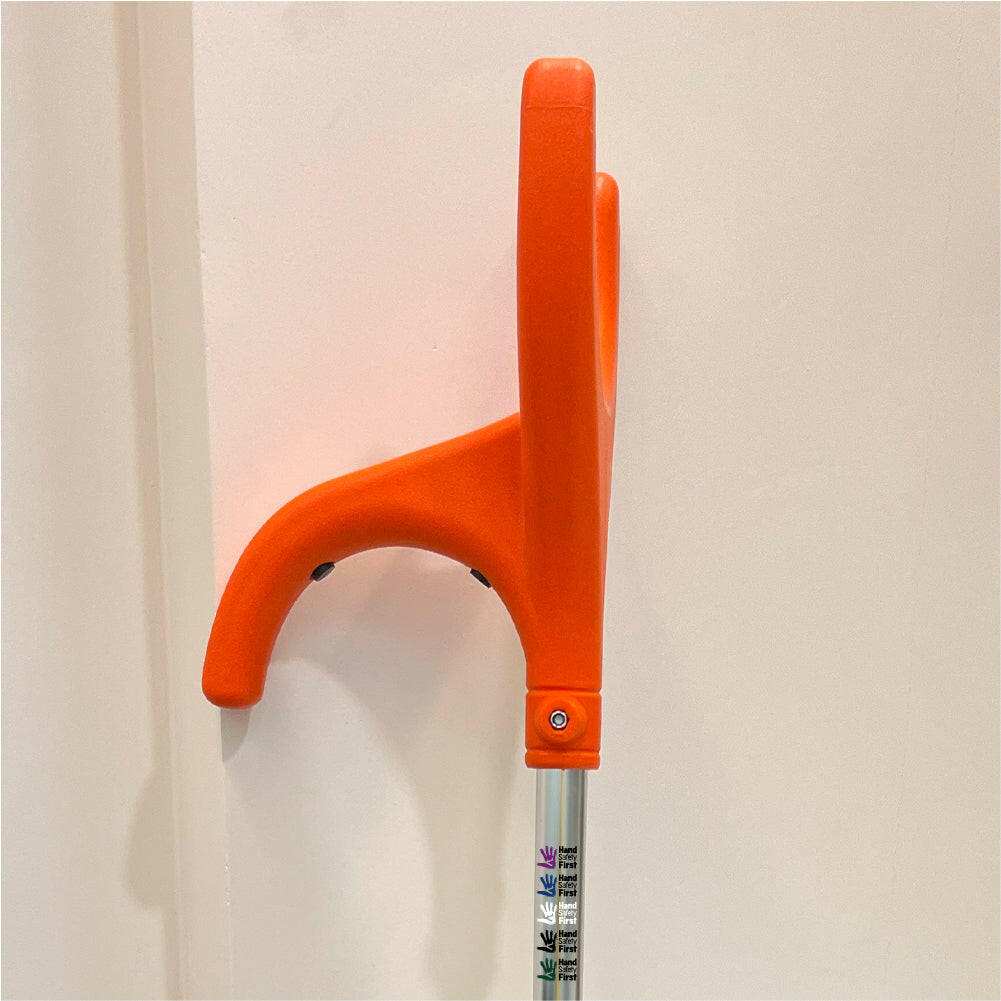

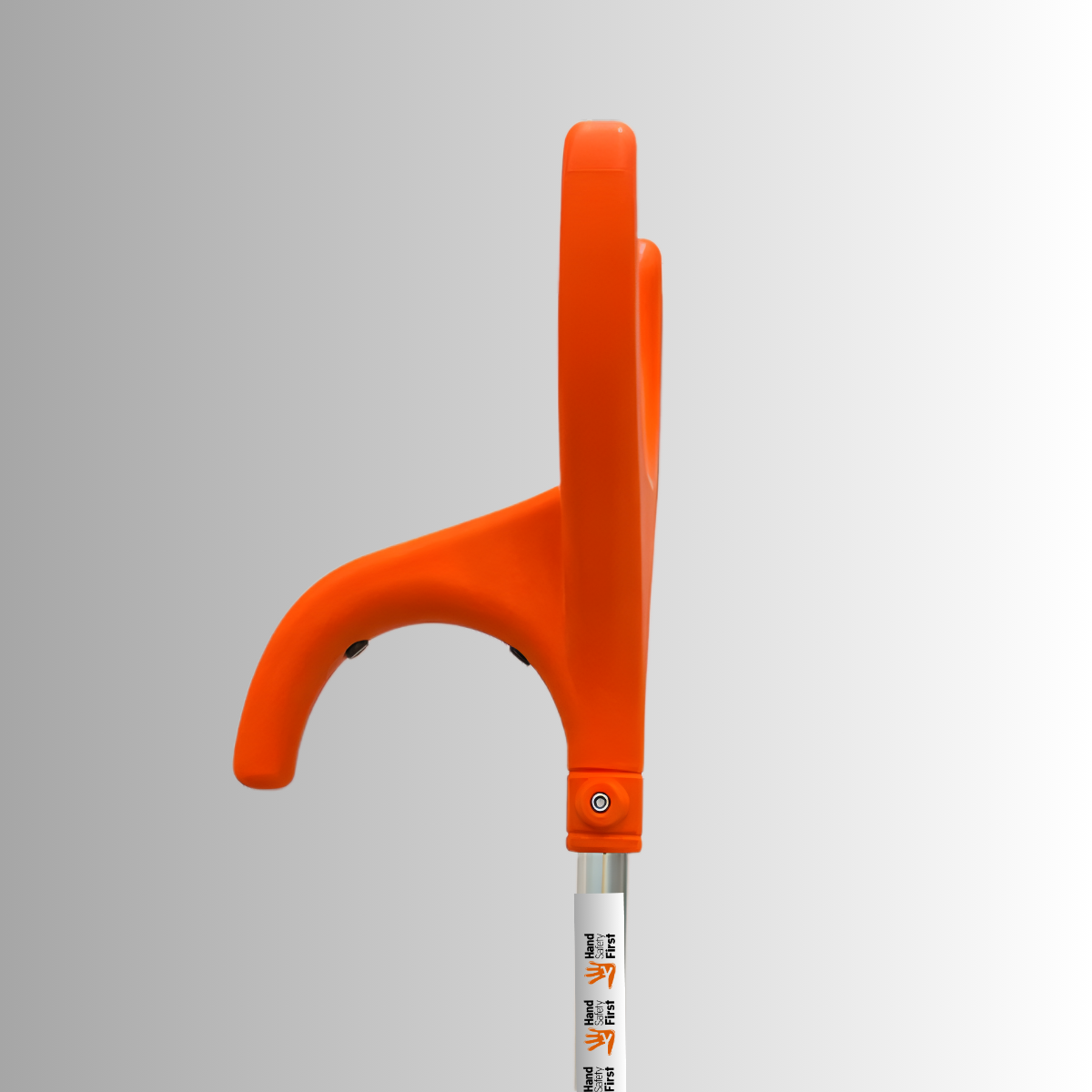

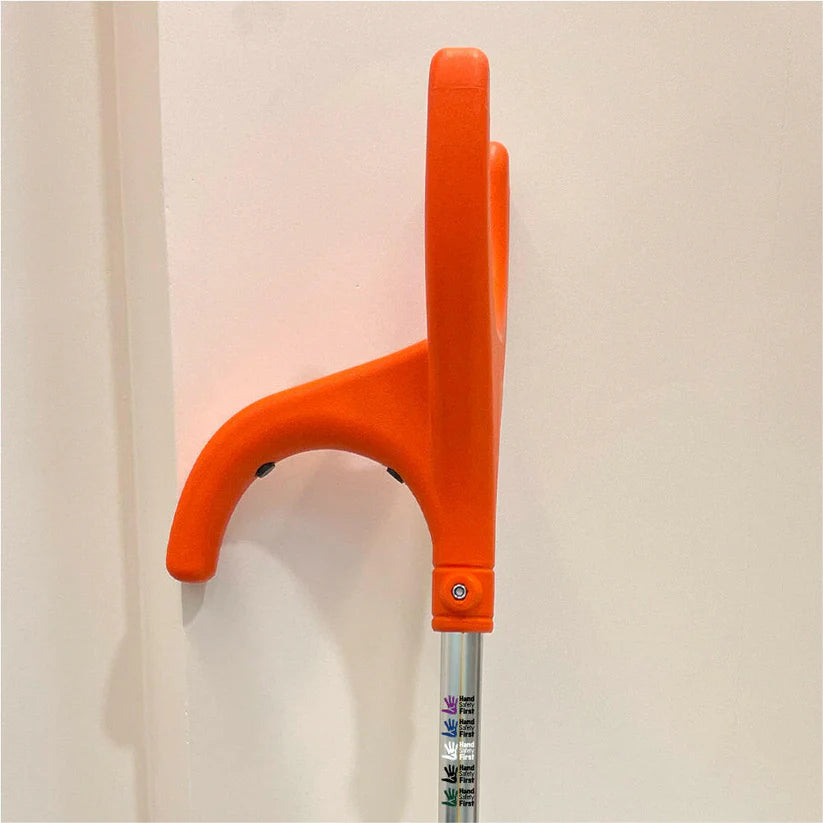

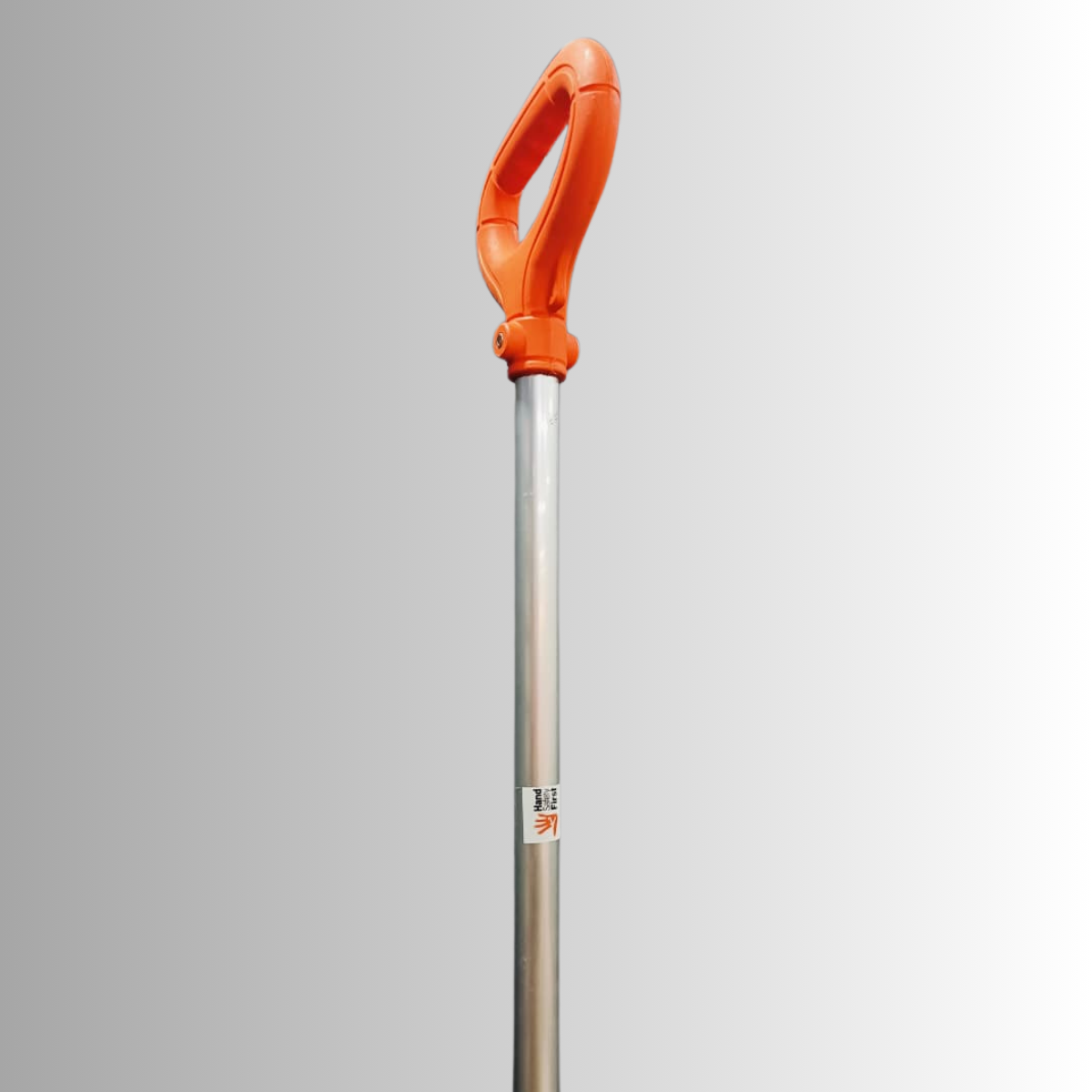

Tag Line Retrieval Hook

Integrated hook allows operators to retrieve or reposition tag lines safely from a distance.

Heavy Duty Aluminum Shaft

Constructed using marine-grade aluminum for durability and corrosion resistance in offshore drilling environments.

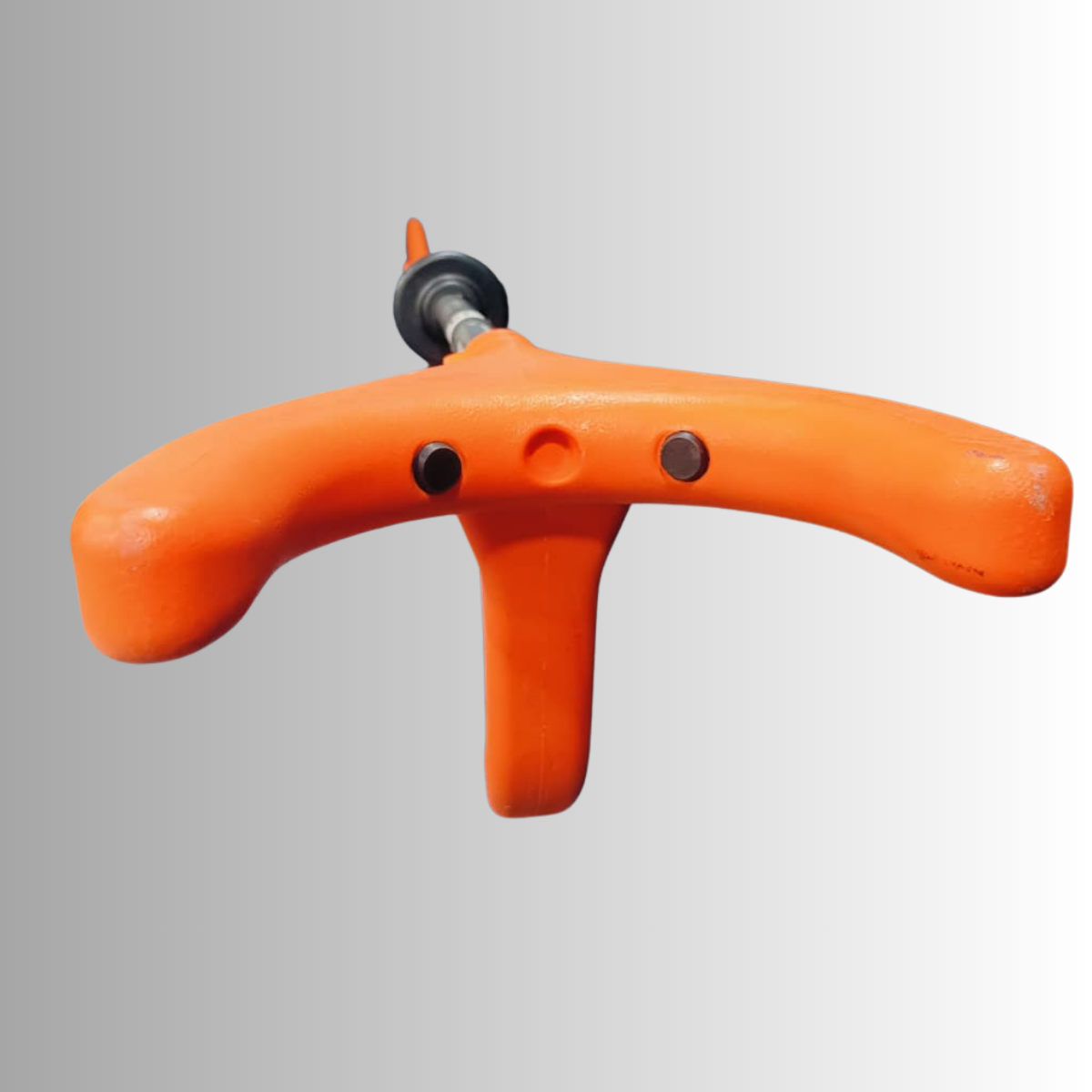

Replaceable Contact Surfaces

Durable polymer pads provide grip while preventing damage to pipe surfaces.

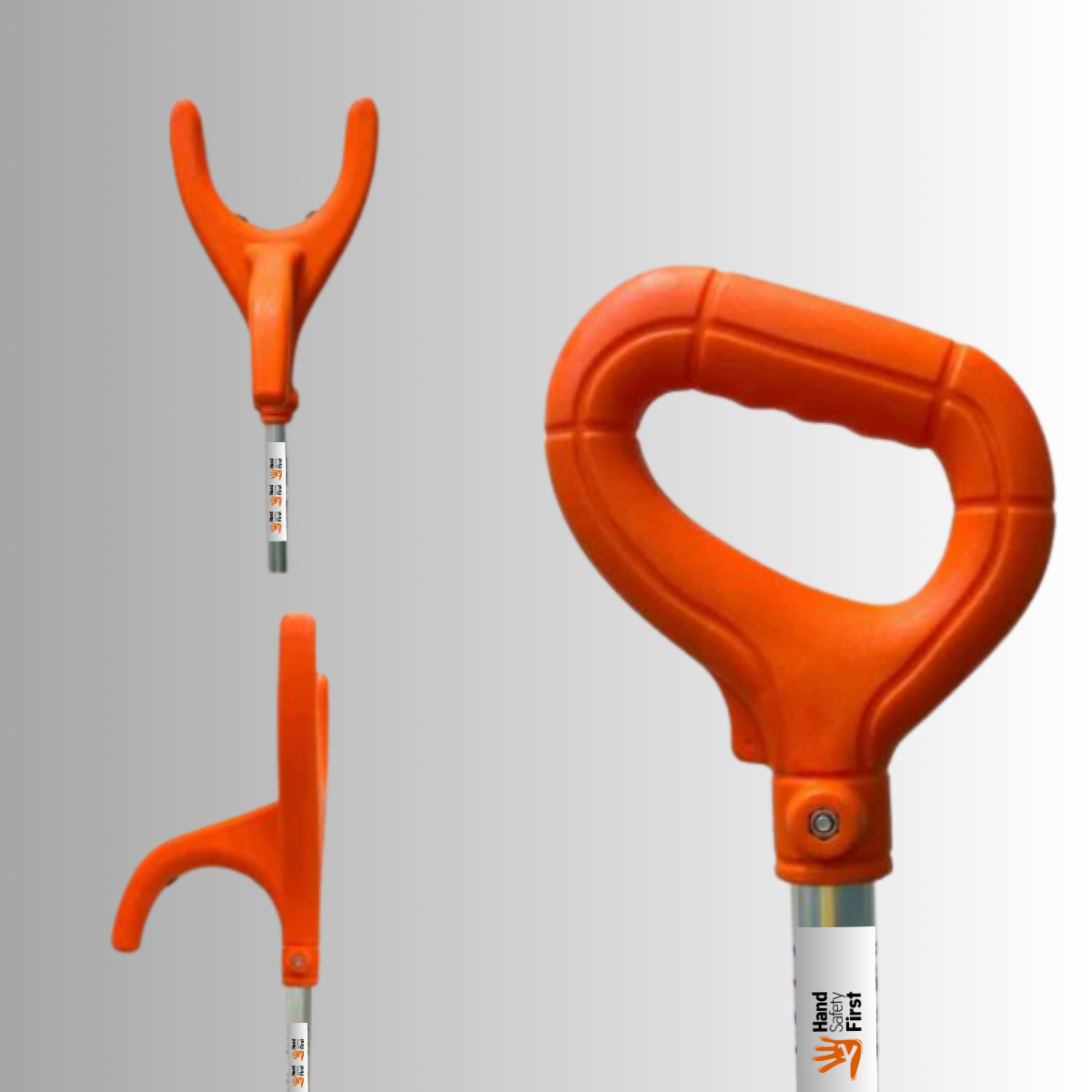

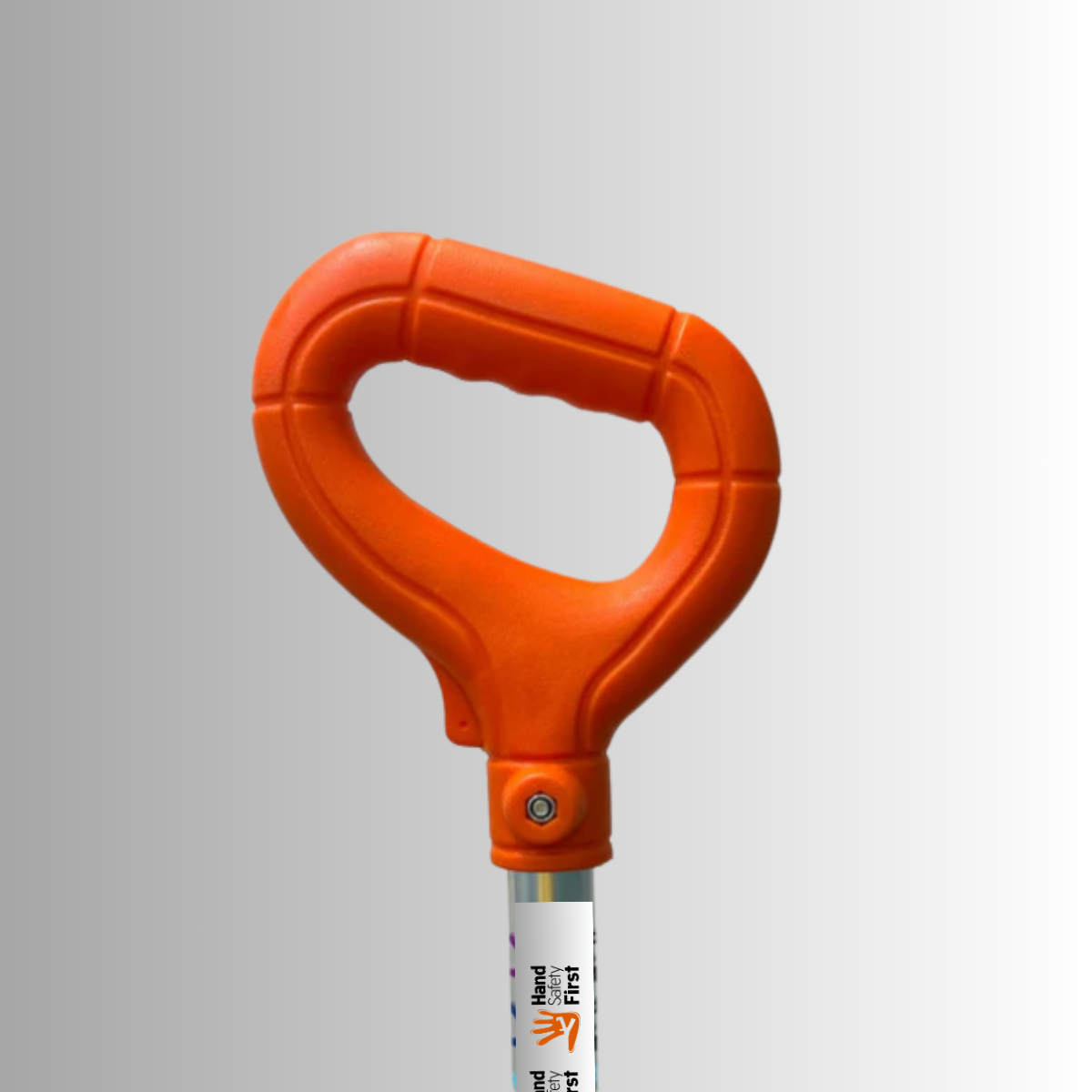

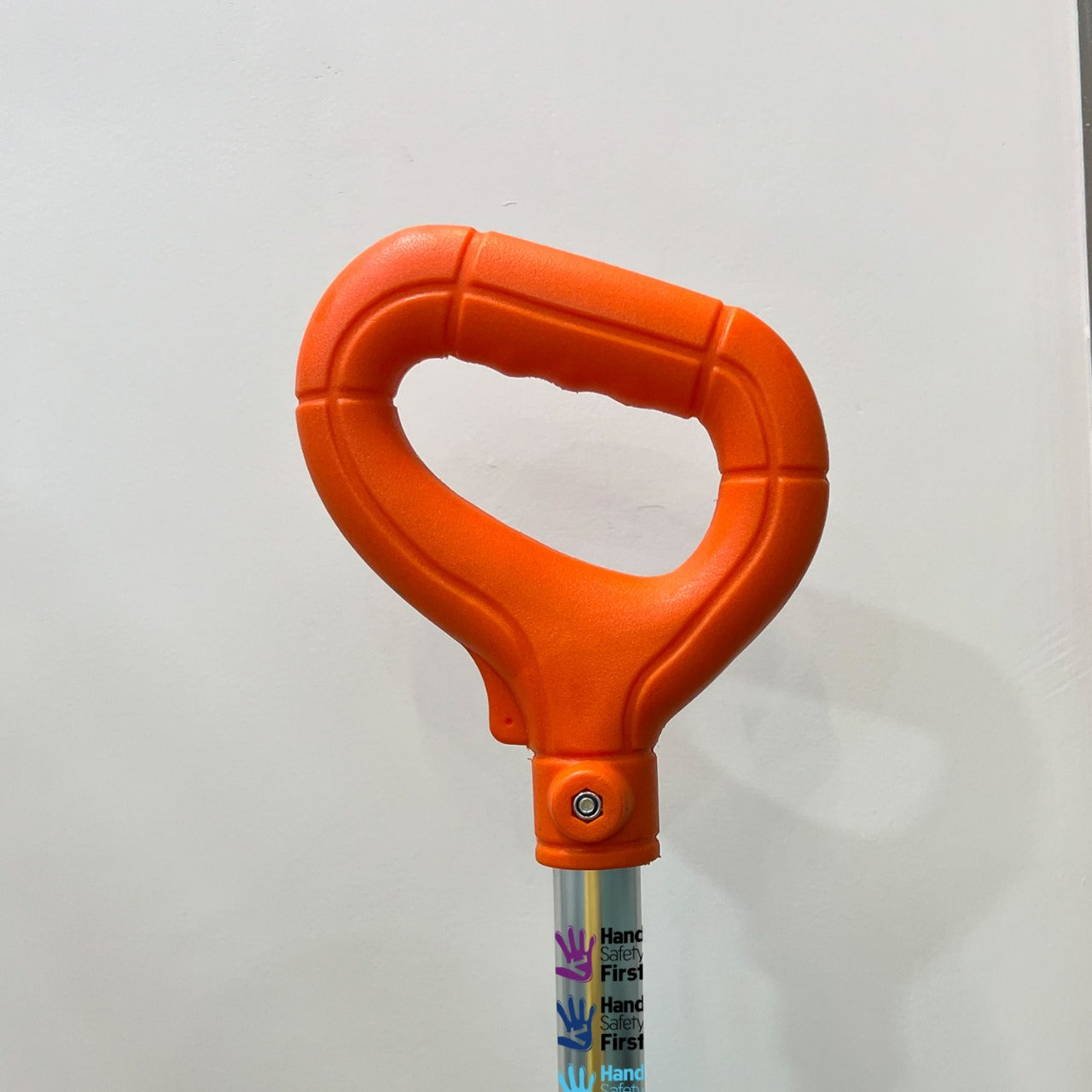

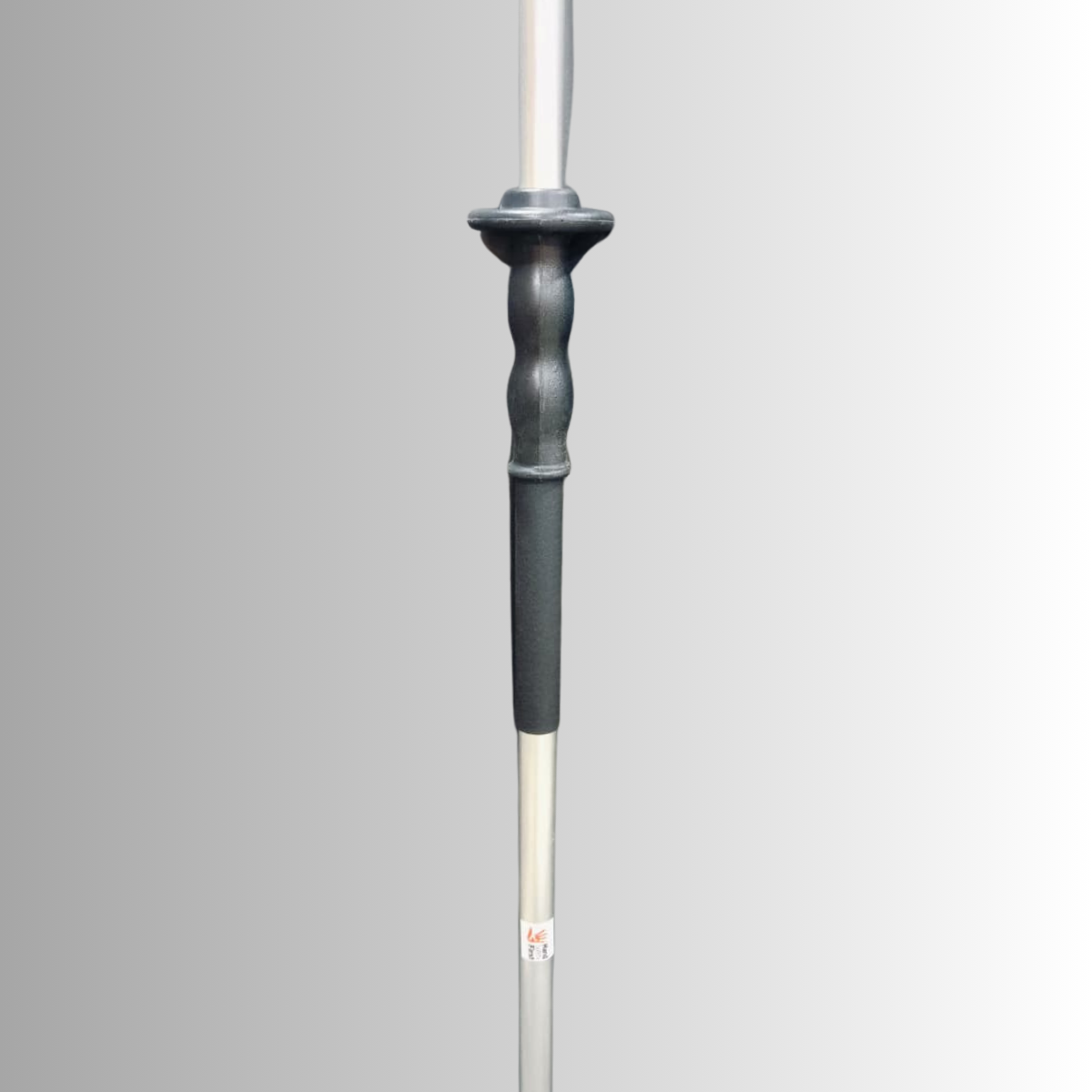

Ergonomic Grip and Hand Protection

Non-slip grip and integrated hand guard improve control while protecting the operator’s hands.

Available Tool Lengths

The HSF Drill Pipe Handling Tool is available in multiple standard lengths to suit different rig floor layouts and pipe handling requirements.

• 1200 mm – Ideal for confined rig floor environments
• 1500 mm – Provides additional reach for improved control
• 1800 mm – Extended reach for safer handling of suspended pipe and loads

Custom tool lengths can also be manufactured based on specific drilling contractor requirements.

Typical Applications

The HSF Drill Pipe Handling Tool is commonly used during drilling operations including:

• Drill pipe positioning
• Pipe tripping operations
• Guiding suspended tubulars
• Handling drilling tools
• Positioning BOP service lines
• Catwalk pipe movement

“Typical Drill Pipe Sizes Handled”

  • 2⅜" drill pipe
  • 2⅞" drill pipe
  • 3½" drill pipe
  • 4½" drill pipe
  • 5" drill pipe
  • 5⅞" drill pipe

Industries Served

HSF hands-free pipe handling tools are widely used in:

• Offshore drilling rigs
• Onshore drilling operations
• Oil & gas exploration
• Well servicing operations
• Industrial pipe handling environments

Safe Work Practices

When using drill pipe handling tools:

• Always maintain communication with the driller or lifting operator
• Use tag lines to stabilize suspended loads
• Never stand under suspended pipe
• Maintain safe distance from moving tubulars
• Always follow site safety procedures and PPE requirements

Why Choose HSF – Hand Safety First

HSF tools are designed to eliminate direct hand contact with loads and moving equipment. Instead of relying solely on PPE, HSF solutions introduce engineering controls that remove workers’ hands from hazardous areas.

The HSF Drill Pipe Handling Tool helps drilling contractors implement hands-free pipe handling practices, improving rig floor safety and supporting zero hand injury initiatives.

HSF Drill Pipe Handling Tool - Part Numbers

HSF-PHT-1200

HSF-PHT-1500

HSF-PHT-1800

Resources

View Technical Datasheet

HSF Drill Pipe Handling Tool
