HSF Pipe Set back Tool for Offshore Handling

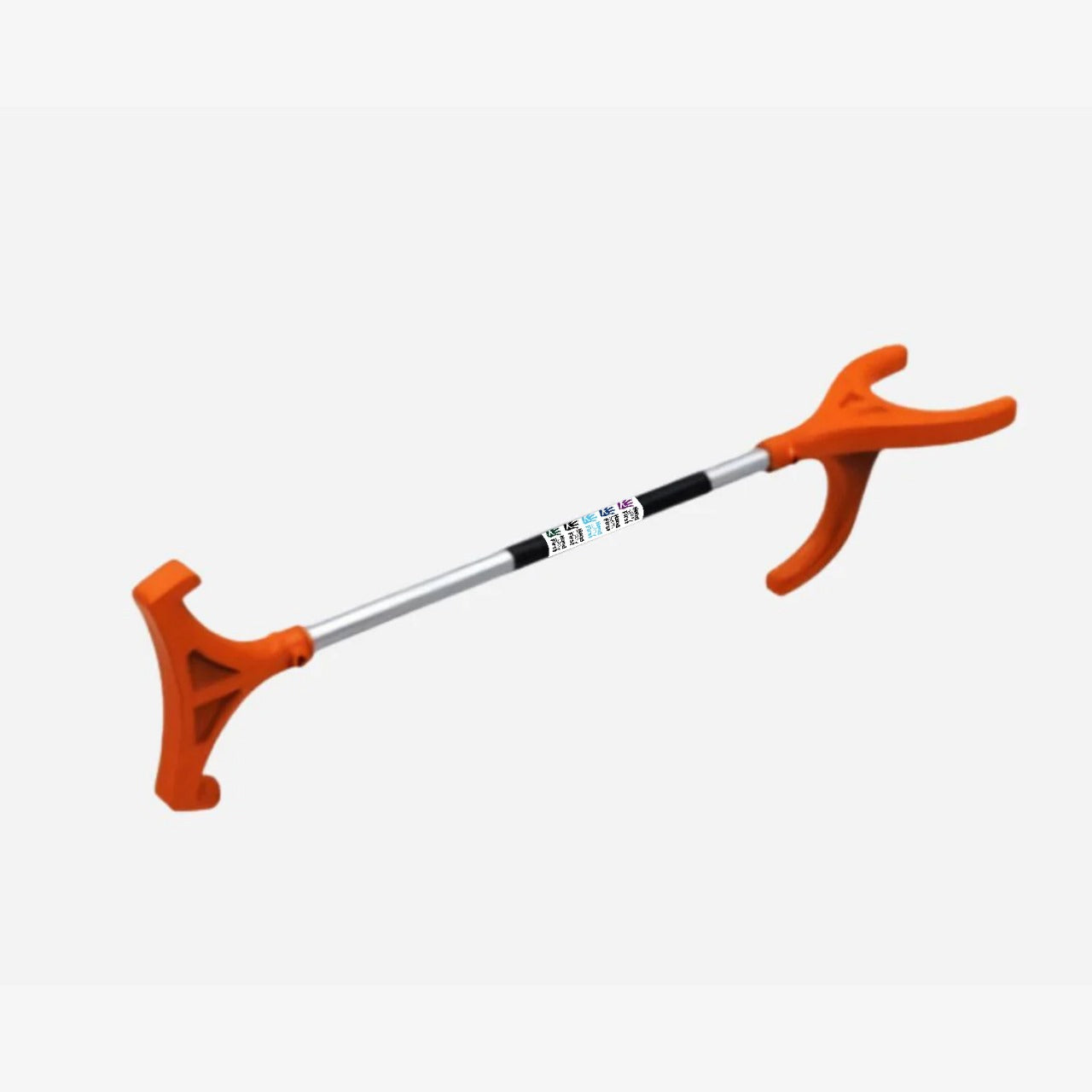

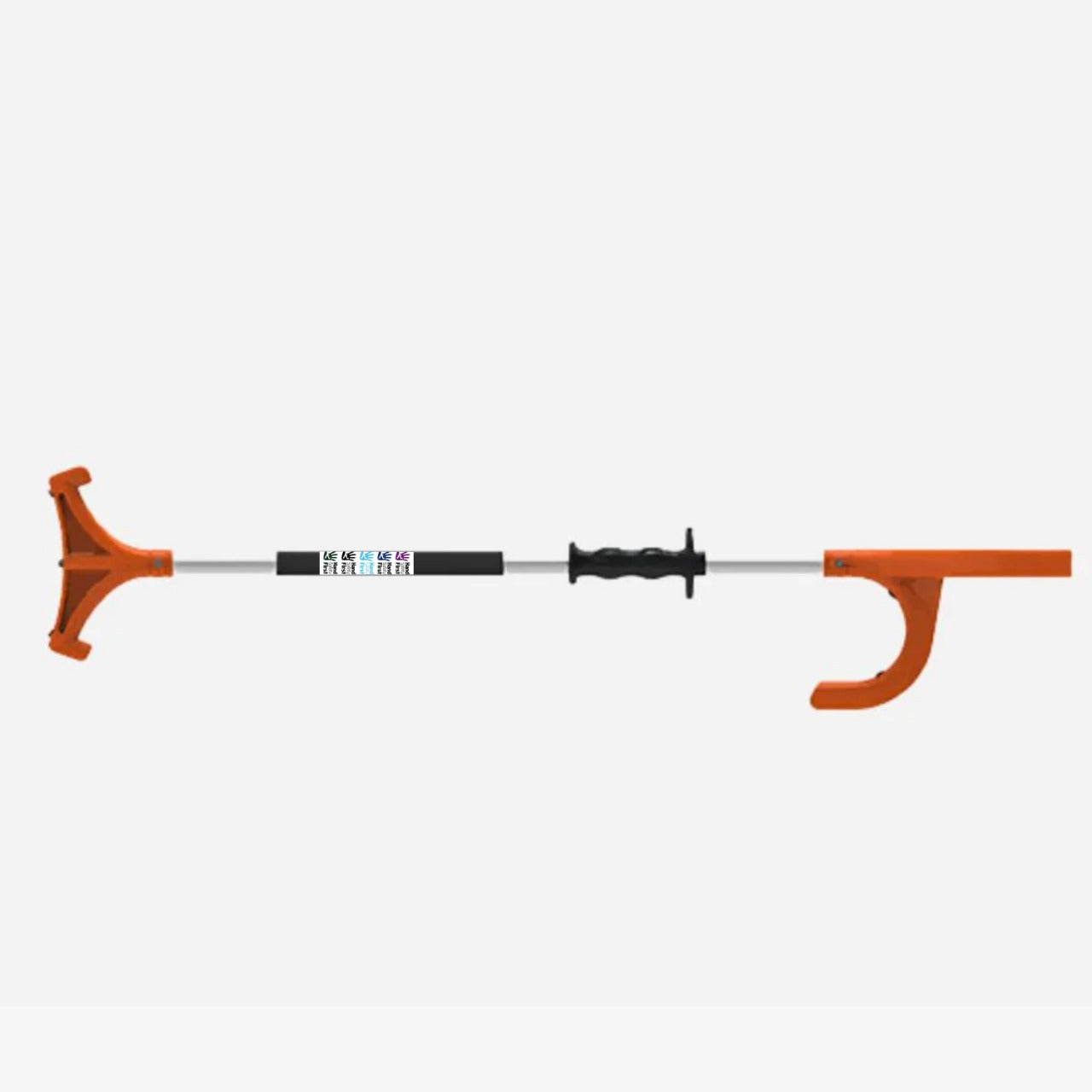

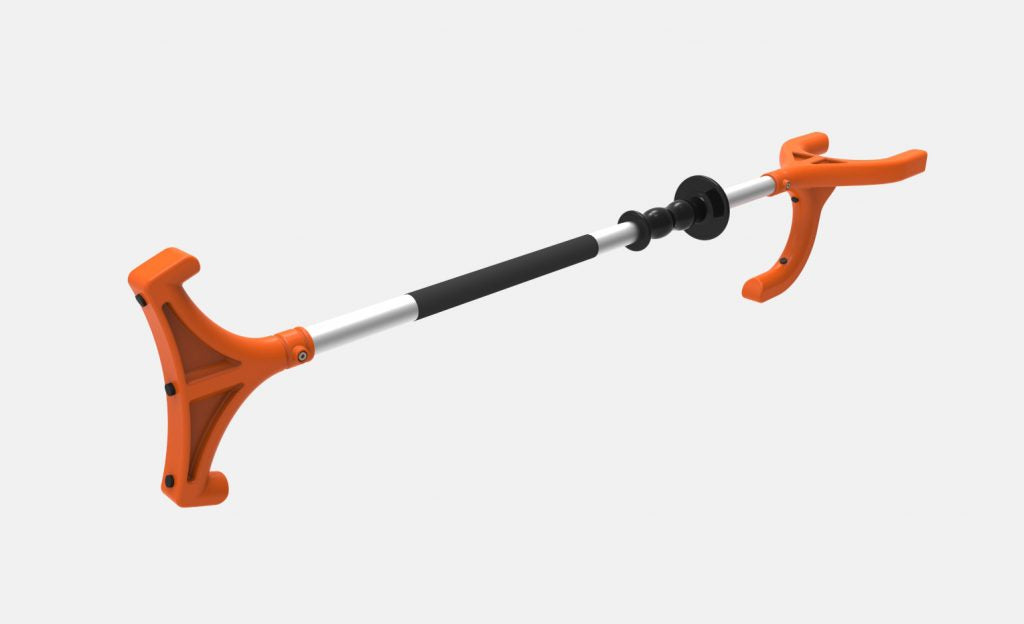

Introducing the HSF Pipe Setback Tool: A double U-shaped attachment crafted to stabilize suspended pipes effectively.

The HSF Pipe Set back Tool is designed for safe maneuvering and precise positioning of Pipe Set back Tool in removal areas. This tool is structured to increase safety and control when handling suspended pipe. It protects hands, fingers and the personnel’s feet in case of maneuvering vertical pipes. It is built with U shaped connection, an aluminum staff and a rubber handle for an impeccable grip. On the rear end comes with shoulder attachment that allows the user extra control that is required to position the pipe in the vertical position, whilst being at safe distance from the landing area.

These series of high-performance pipe handling devices are known for their flexible and versatile utility, robust structure and fail proof operation. Deck Crew Retreat HSF Pipe Set back Tool provides proper handling, hands-free assistance and superior operator protection.

Industrial Applications

Primary uses for this tool include maneuvering, stacking pipe on oilfield racks, and landing and storing HSF Pipe Set back Tool in set back areas around the Piping site. Designed specifically for catwalks and in general for any overhead pipe handling operation on oil and gas piping platforms, this HFS Pipe Set back tool handling tool is versatile and can also be used to move pipe bundles, large pipes in other industries such as pipe manufacturing sectors. .

When handling heavy overhead pipes without the use of a hands-free safety tool, crushing points, hand and finger injuries. The HFS Pipe Set back Tool retraction tool ensures the user safe handling of the pipe pushing and pulling functions, both in a fixed position and in a suspended state.

How does the HSF Pipe Set back Tool work?

To prevent operational risks, the global safety and performance standards of platforms are essential for movement and optimal control. This free tool in the Podium area provides excellent flexibility at the same time and provides guaranteed accuracy of load movements. These features help protect the worker's limbs and reduce potential damage to the pipe, housing, and its threads.

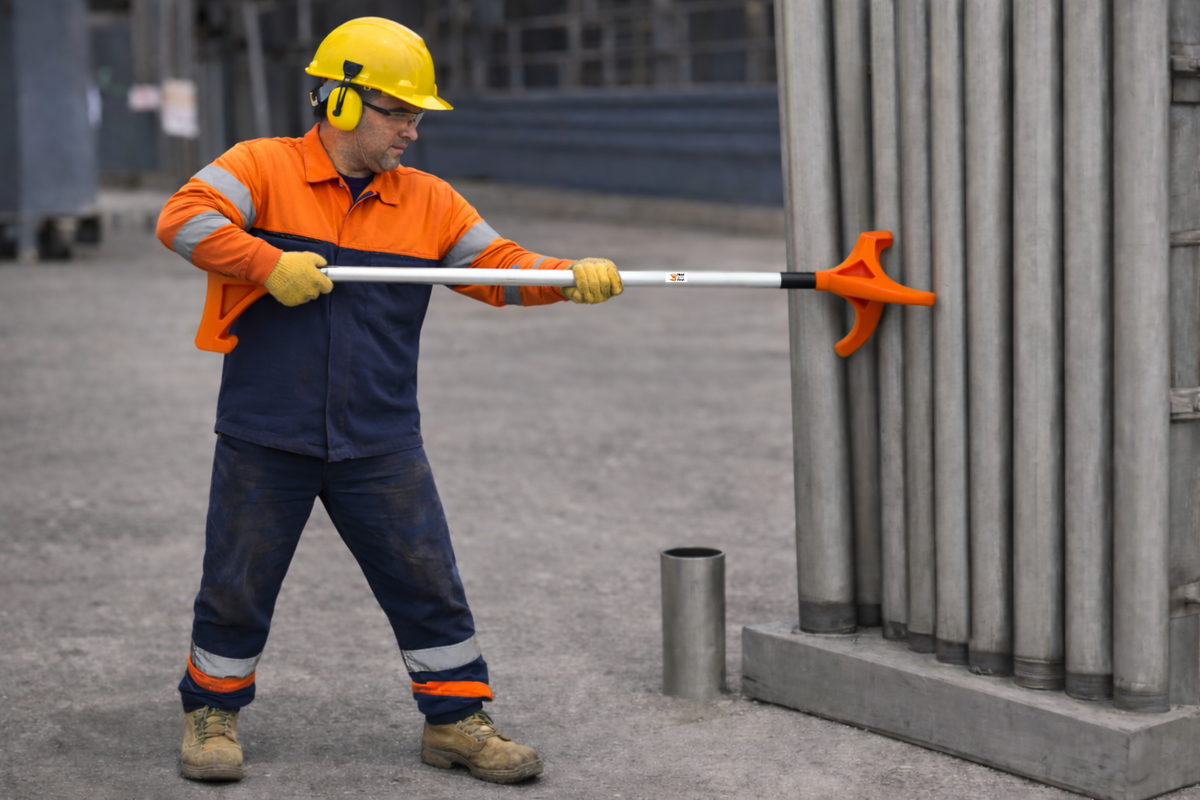

To pull in pipe with this tool, the operator must hold the end of the handle firmly against one shoulder and hold the center of the barrel with the other hand to control the pipe movement. At the end a unique attachment design facilitates push and pull function; it is constructed with a U-shaped section for outwards motion, while the inward motion is controlled by a reverse under hook.

For heavy and suspended pipes and controlled usage of the HSF pipe set back tool, participation of two operators together is highly recommended. After completing the task, the push -pull tool is surrounded by the standing position of the storage station. This helps maintain an organized zone in the opposite part and use the appropriate storage at the same time to increase the life cycle of the Guide tool.

Special Features of HSF Pipe Set Back Tool

To allow hands-free casing operation with a safety buffer zone, these wide-range air HSF Pipe Set back tools have a shaft long enough to perform the job ergonomically.

They are available in two sizes: 1200 mm and 1500 mm.

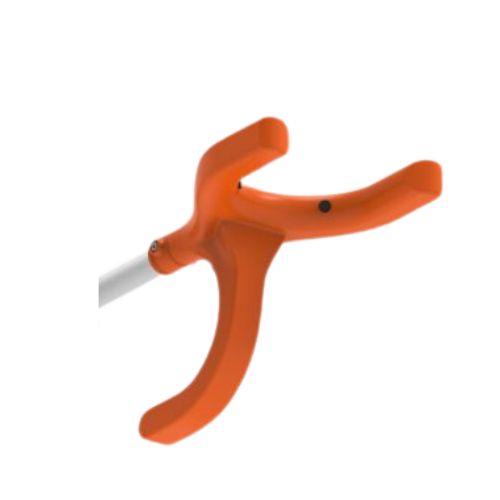

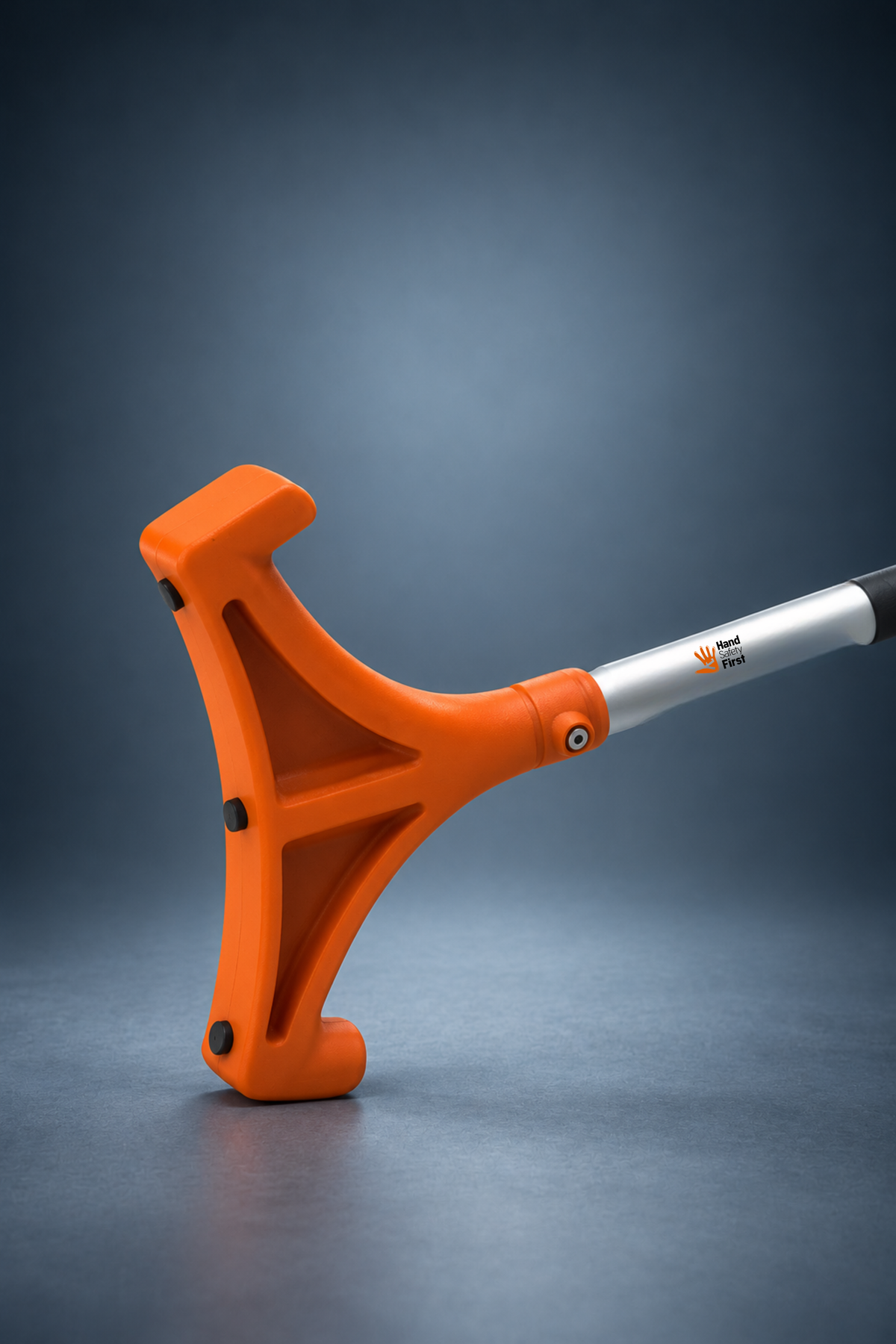

The U-shaped attachment forward facing and one rear facing helps to stabilize the suspended pipe with up to 5⅞ inches in diameters and maneuvering them while in vertical position.

The safety of this tool’s design is further enhanced with a tagline retrieving hook to provide a rigger to swinging or rotation of suspended pipes and preventing the operator from exposure to hazards.

This is a HSF Pipe Set back Tool to consider the general specifications of Hands.

  • Hook for recovery of labels
  • 1200 mm and 1500 mm length are available
  • Distributed in visible colors
  • Made by light and robust aluminum staff
  • Designed with rubber coating for handle without slip
  • Modification function for thrust and traction
  • Up to 5 inch pipes diameter
  • Provides an excellent lever effect
  • Sustainable, minor rubber grip.

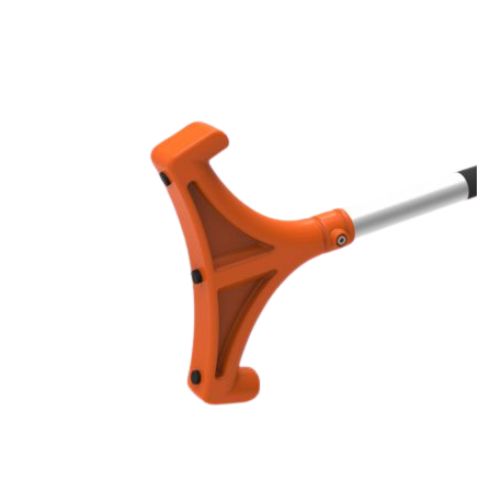

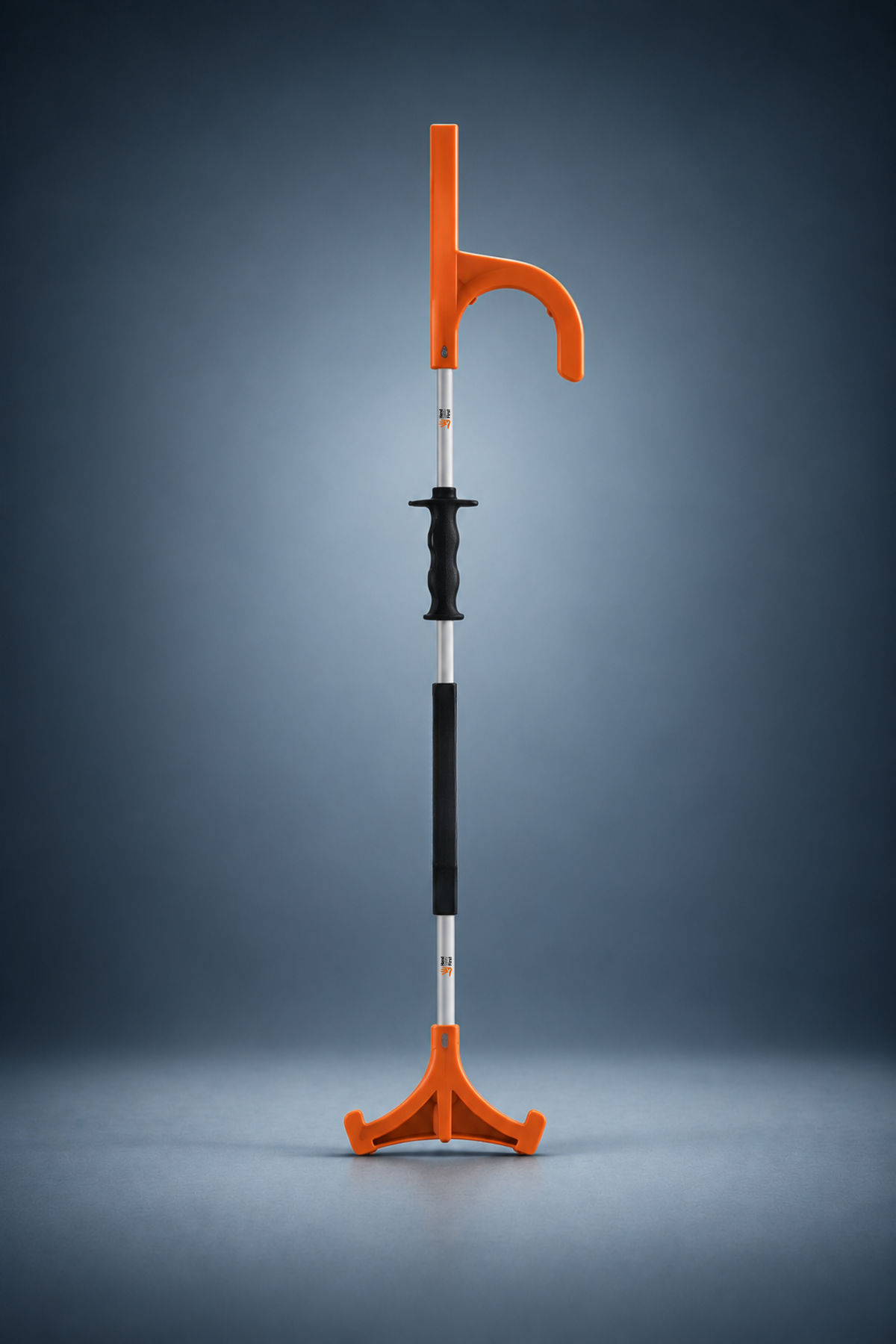

  • The rear shoulder attachment provides additional leverage to place the pipe in a vertical position.
  • Good Ergonomic Performance

Safety Benefits When Using HSF Pipe Set back Tool

When performing Piping operations, it is highly recommended to combine the push pull pipe tool with other safety equipment such as crush point prevention safety boots, and face and head PPE. The main benefit of the HSF Pipe Set Back tool is the increased safety buffer zone when positioning . pipes present a number of hazards such as exposure to corrosive Piping fluid, crush points and pinch points when handling the pipe or when adjusting the position of pipe threads.

Conversely, because these pipes are heavy and manual manipulation is often performed in a bent-over, back-straining position, the use of HSF pipe set back tools also improves the ergonomic safety of pipe handling systems on oil Piping platforms.
